Multi-Agent Collaboration with Human-in-loop

# %pip install -U --no-cache-dir  \
# "langchain==0.3.7" \
# "langchain-aws==0.2.6" \
# "langchain-community==0.3.5" \
# "langchain-text-splitters==0.3.2" \
# "langchainhub==0.1.20" \
# "langgraph==0.2.45" \
# "langgraph-checkpoint==2.0.2" \
# "langgraph-sdk==0.1.35" \
# "langsmith==0.1.140" \
# "pypdf==3.8,<4" \
# "ipywidgets>=7,<8" \
# "matplotlib==3.9.0"

import sqlite3
from contextlib import closing

from langchain_core.tools import tool
import random
from datetime import datetime, timedelta
from langgraph.prebuilt import ToolNode
import sqlite3
import pandas as pd
from langchain_core.runnables.config import RunnableConfig


def read_travel_data(file_path: str = "data/synthetic_travel_data.csv") -> pd.DataFrame:
    """Read travel data from CSV file"""
    try:
        df = pd.read_csv(file_path)
        return df
    except FileNotFoundError:
        return pd.DataFrame(
            columns=["Id", "Name", "Current_Location", "Age", "Past_Travel_Destinations", "Number_of_Trips", "Flight_Number", "Departure_City", "Arrival_City", "Flight_Date"]
        )


@tool
def search_flights(config: RunnableConfig, arrival_city: str, date: str = None) -> str:
    """
    Use this tool to search for flights between two cities. It knows the user's current location

    Args:
        arrival_city (str): The city of arrival
        date (str, optional): The date of the flight in YYYY-MM-DD format. If not provided, defaults to 7 days from now.

    Returns:
        str: A formatted string containing flight information including airline, departure time, arrival time, duration, and price for multiple flights.
    """

    df = read_travel_data()
    user_id = config.get("configurable", {}).get("user_id")

    if user_id not in df["Id"].values:
        return "User not found in the travel database."

    user_data = df[df["Id"] == user_id].iloc[0]
    current_location = user_data["Current_Location"]

    departure_city = current_location.capitalize()
    arrival_city = arrival_city.capitalize()

    if date is None:
        date = (datetime.now() + timedelta(days=7)).strftime("%Y-%m-%d")

    # Generate mock flight data
    num_flights = random.randint(2, 5)
    airlines = ["AirEurope", "SkyWings", "TransContinental", "EuroJet", "GlobalAir"]
    flights = []

    for _ in range(num_flights):
        airline = random.choice(airlines)
        duration = timedelta(minutes=2)
        price = random.randint(100, 400)
        departure_time = datetime.strptime(date, "%Y-%m-%d") + timedelta(
            hours=random.randint(0, 23), minutes=random.randint(0, 59)
        )
        arrival_time = departure_time + duration

        flights.append(
            {
                "airline": airline,
                "departure": departure_time.strftime("%H:%M"),
                "arrival": arrival_time.strftime("%H:%M"),
                "duration": str(duration),
                "price": price,
            }
        )

    # Format the results
    import json

    flight_data = {
        "departure_city": departure_city,
        "arrival_city": arrival_city,
        "date": date,
        "flights": []
    }
    for i, flight in enumerate(flights, 1):
        flight_info = {
            "flight_number": i,
            "airline": flight['airline'],
            "departure": flight['departure'],
            "arrival": flight['arrival'],
            "duration": str(flight['duration']),
            "price": flight['price']
        }
        flight_data["flights"].append(flight_info)

    return json.dumps(flight_data) + " FINISHED"

@tool
def retrieve_flight_booking(booking_id: int) -> str:
    """
    Retrieve a flight booking by ID

    Args:
        booking_id (int): The unique identifier of the booking to retrieve

    Returns:
        str: A string containing the booking information if found, or a message indicating no booking was found
    """
    booking = None
    with closing(sqlite3.connect("data/travel_bookings.db", timeout=10.0)) as conn:
        with closing(conn.cursor()) as cursor:
            # Execute the query to retrieve the booking
            cursor.execute("SELECT * FROM flight_bookings WHERE booking_id = ?", (booking_id,))
            booking = cursor.fetchone()
        # Close the connection
        conn.close()

    if booking:
        return f"Booking found: {booking} FINISHED"
    else:
        return f"No booking found with ID: {booking_id} FINISHED"

@tool
def change_flight_booking(booking_id: int, new_date: str) -> str:
    """
    Change the date of a flight booking

    Args:
        booking_id (int): The unique identifier of the booking to be changed
        new_date (str): The new date for the booking

    Returns:
        str: A message indicating the result of the booking change operation
    """
    # conn = sqlite3.connect("data/travel_bookings.db")
    # cursor = conn.cursor()
    result = ""
    with closing(sqlite3.connect("data/travel_bookings.db", timeout=10.0)) as conn:
        with closing(conn.cursor()) as cursor:
            # Execute the query to update the booking date
            cursor.execute(
                "UPDATE flight_bookings SET departure_date = ? WHERE booking_id = ?",
                (new_date, booking_id),
            )
            conn.commit()

            # Check if the booking was updated
            if cursor.rowcount > 0:
                result = f"Booking updated with ID: {booking_id}, new date: {new_date} FINISHED"
            else:
                result = f"No booking found with ID: {booking_id} FINISHED"

        # Close the connection
        conn.close()

    return result

@tool
def cancel_flight_booking(booking_id: int) -> str:
    """
    Cancel a flight booking. If the task complete, reply with "FINISHED"

    Args:
        booking_id (str): The unique identifier of the booking to be cancelled

    Returns:
        str: A message indicating the result of the booking cancellation operation

    """
    # conn = sqlite3.connect("data/travel_bookings.db")
    # cursor  = conn.cursor()
    result = ""
    with closing(sqlite3.connect("data/travel_bookings.db", timeout=10.0)) as conn:
        with closing(conn.cursor()) as cursor:
            cursor.execute("DELETE FROM flight_bookings WHERE booking_id = ?", (booking_id,))
            conn.commit()
            # Check if the booking was deleted
            if cursor.rowcount > 0:
                result = f"Booking canceled with ID: {booking_id} FINISHED"
            else:
                result = f"No booking found with ID: {booking_id} FINISHED"

        # Close the connection
        conn.close()

    return result

from langchain_aws import ChatBedrockConverse
from langchain_aws import ChatBedrock
import boto3

# ---- ⚠️ Update region for your AWS setup ⚠️ ----
bedrock_client = boto3.client("bedrock-runtime", region_name="us-west-2")

llm = ChatBedrockConverse(
    model="anthropic.claude-3-haiku-20240307-v1:0",
    temperature=0,
    max_tokens=None,
    client=bedrock_client,
    # other params...
)

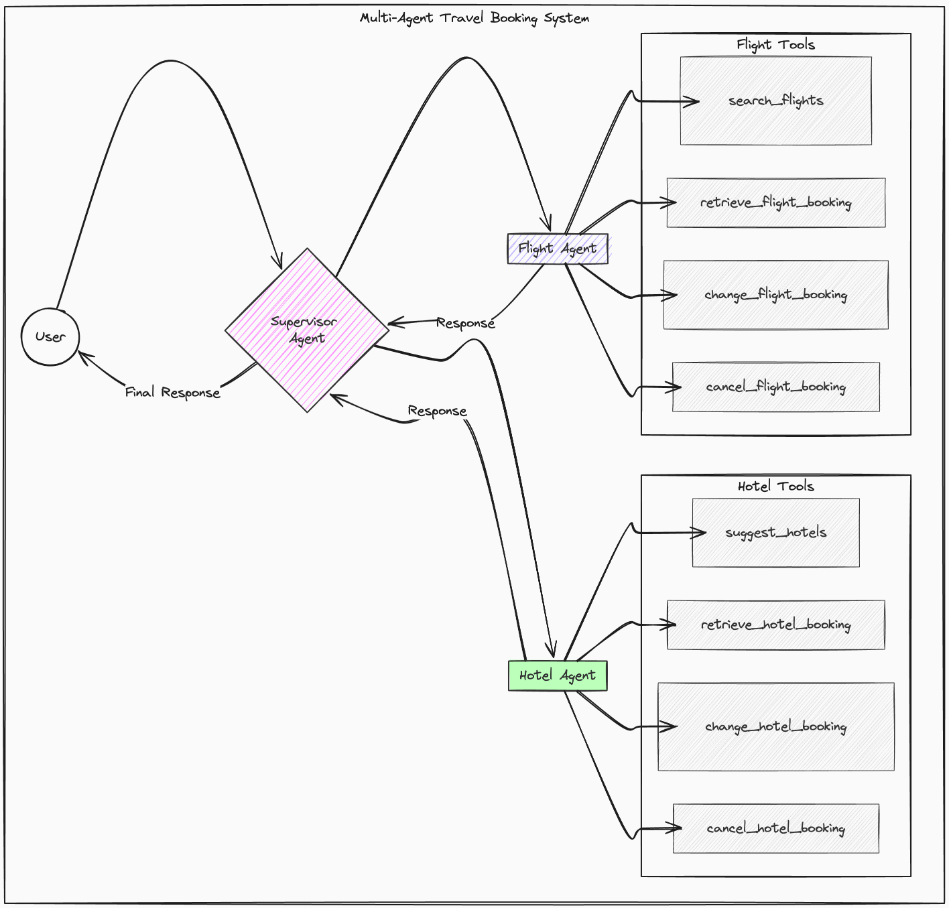

import functools
import operator
from typing import Sequence, TypedDict

from langchain_core.messages import BaseMessage

from langgraph.graph import END, StateGraph, START
from langgraph.prebuilt import create_react_agent

from typing import Annotated
from langgraph.graph.message import add_messages
from langgraph.checkpoint.memory import MemorySaver

class State(TypedDict):
    messages: Annotated[list, add_messages]
    next: str

memory = MemorySaver()


flight_agent = create_react_agent(
    llm,
    tools=[
        search_flights,
        retrieve_flight_booking,
        change_flight_booking,
        cancel_flight_booking,
    ],
    state_modifier="""
    First gather all the information required to call a tool.
    If you are not able to find the booking the do not try again and just reply with "FINISHED".
    If tool has returned the results then reply with "FINISHED"
    If all tasks are complete, reply with "FINISHED"
    """,
    checkpointer=memory,
)

from IPython.display import Image, display

display(Image(flight_agent.get_graph().draw_mermaid_png()))

config = {"configurable": {"thread_id": "127", "user_id":578}}
ret_messages = flight_agent.invoke({"messages": [("user", "Find flight to Amsterdam")]}, config)
ret_messages['messages'][-1].pretty_print()

#- un coment i you want to see the full orchesteration including the tool calling
#ret_messages

@tool
def suggest_hotels(city: str, checkin_date: str) -> dict:
    """
    Use this tool to search for hotels in these cities

    Args:
        city (str): The name of the city to search for hotels
        checkin_date (str): The check-in date in YYYY-MM-DD format

    Returns:
        dict: A dictionary containing:
            - hotels (list): List of hotel names in the specified city
            - checkin_date (str): The provided check-in date
            - checkout_date (str): A randomly generated checkout date
            - price (int): A randomly generated price for the stay
    """
    hotels = {
        "New York": ["Hotel A", "Hotel B", "Hotel C"],
        "Paris": ["Hotel D", "Hotel E", "Hotel F"],
        "Tokyo": ["Hotel G", "Hotel H", "Hotel I"],
    }

    # Generate random checkout date and price
    checkin = datetime.strptime(checkin_date, "%Y-%m-%d")
    checkout = checkin + timedelta(days=random.randint(1, 10))
    price = random.randint(100, 500)

    hotel_list = hotels.get(city, ["No hotels found"])
    return {
        "hotels": hotel_list,
        "checkin_date": checkin_date,
        "checkout_date": checkout.strftime("%Y-%m-%d"),
        "price": price,
    }

@tool
def retrieve_hotel_booking(booking_id: int) -> str:
    """
    Retrieve a hotel booking by ID

    Args:
        booking_id (int): The unique identifier of the hotel booking to retrieve

    Returns:
        str: A string containing the hotel booking information if found, or a message indicating no booking was found
    """
    # conn = sqlite3.connect("data/travel_bookings.db")
    # cursor = conn.cursor()
    booking = ""
    with closing(sqlite3.connect("./data/travel_bookings.db", timeout=10.0)) as conn:
        with closing(conn.cursor()) as cursor:
            cursor.execute(f"SELECT * FROM hotel_bookings WHERE booking_id='{booking_id}'")
            booking = cursor.fetchone()

        # Close the connection
        conn.close()

    if booking:
        return f"Booking found: {booking}"
    else:
        return f"No booking found with ID: {booking_id}"

from datetime import datetime

@tool
def change_hotel_booking(booking_id: int, new_checkin_date: str = None, new_checkout_date: str = None) -> str:
    """
    Change the dates of a hotel booking in the database. If the task completes, reply with "FINISHED"

    Args:
    booking_id (int): The unique identifier of the booking to be changed
    new_checkin_date (str, optional): The new check-in date in YYYY-MM-DD format
    new_checkout_date (str, optional): The new check-out date in YYYY-MM-DD format

    Returns:
    str: A message indicating the result of the booking change operation
    """

    # conn = sqlite3.connect("data/travel_bookings.db")  # Replace with your actual database file
    # cursor = conn.cursor()

    with closing(sqlite3.connect("./data/travel_bookings.db", timeout=10.0)) as conn:
        with closing(conn.cursor()) as cursor:
            try:
                # First, fetch the current booking details
                cursor.execute(
                    """
                    SELECT * FROM hotel_bookings WHERE booking_id = ?
                """,
                    (booking_id,),
                )

                booking = cursor.fetchone()

                if booking is None:
                    return f"No hotel booking found with ID: {booking_id}"

                # Unpack the booking details
                ( _, user_id,user_name,city,hotel_name,check_in_date,check_out_date,nights,price_per_night,total_price,num_guests,room_type,) = booking

                # Update check-in and check-out dates if provided
                if new_checkin_date:
                    check_in_date = new_checkin_date
                if new_checkout_date:
                    check_out_date = new_checkout_date

                # Recalculate nights and total price
                checkin = datetime.strptime(check_in_date, "%Y-%m-%d")
                checkout = datetime.strptime(check_out_date, "%Y-%m-%d")
                nights = (checkout - checkin).days
                total_price = nights * price_per_night

                # Update the booking in the database
                cursor.execute(
                    """
                    UPDATE hotel_bookings
                    SET check_in_date = ?, check_out_date = ?, nights = ?, total_price = ?
                    WHERE booking_id = ?
                """,
                    (check_in_date, check_out_date, nights, total_price, booking_id),
                )

                conn.commit()

                return f"Hotel booking updated: Booking ID {booking_id}, New check-in: {check_in_date}, New check-out: {check_out_date}, Nights: {nights}, Total Price: {total_price} FINISHED"

            except sqlite3.Error as e:
                conn.rollback()
                return f"An error occurred: {str(e)} Booking ID {booking_id}, New check-in: {check_in_date} FINISHED"

            finally:
                conn.close()

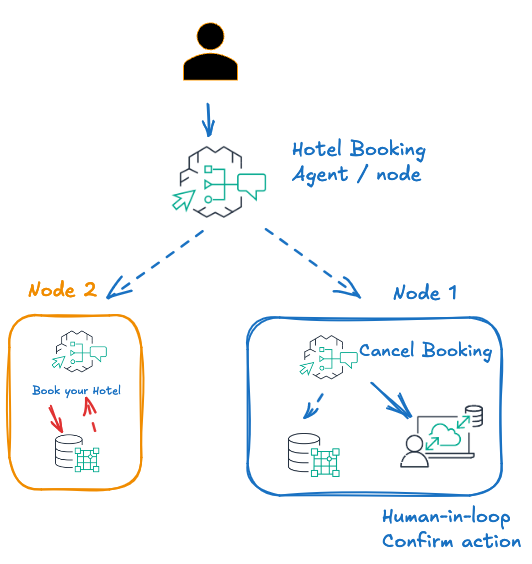

@tool
def cancel_hotel_booking(booking_id: int) -> str:
    """
    Cancel a hotel booking. If the task completes, reply with "FINISHED"

    Args:
        booking_id (str): The unique identifier of the booking to be cancelled

    Returns:
        str: A message indicating the result of the booking cancellation operation
    """
    # conn = sqlite3.connect("data/travel_bookings.db")
    # cursor  = conn.cursor()
    result=""
    with closing(sqlite3.connect("data/travel_bookings.db", timeout=10.0)) as conn:
        with closing(conn.cursor()) as cursor:
            cursor.execute("DELETE FROM hotel_bookings WHERE booking_id = ?", (booking_id,))
            conn.commit()

            # Check if the booking was deleted
            if cursor.rowcount > 0:
                result = f"Booking canceled with ID: {booking_id} FINISHED"
            else:
                result = f"No booking found with ID: {booking_id} FINISHED"

        # Close the connection
        conn.close()

    return result

from langchain_core.prompts import ChatPromptTemplate
from langchain_core.runnables import Runnable, RunnableConfig


primary_assistant_prompt = ChatPromptTemplate.from_messages(
    [
        (
            "system",
            "You are a helpful assistant who manage hotel bookings"

        ),
        ("placeholder", "{messages}"),
    ]
)
hotel_tools = [
    suggest_hotels,
    retrieve_hotel_booking,
    change_hotel_booking,
    cancel_hotel_booking,
]

runnable_with_tools = primary_assistant_prompt | llm.bind_tools(
    hotel_tools
)


def hotel_agent(state: State):
    return {"messages": [runnable_with_tools.invoke(state)]}

import json

from langchain_core.messages import ToolMessage


class HumanApprovalToolNode:
    """A node that runs the tools requested in the last AIMessage."""

    def __init__(self, tools: list) -> None:
        self.tools_by_name = {tool.name: tool for tool in tools}

    def __call__(self, inputs: dict):
        if messages := inputs.get("messages", []):
            message = messages[-1]
        else:
            raise ValueError("No message found in input")
        outputs = []
        for tool_call in message.tool_calls:
            user_input = input(
                "Do you approve of the above actions? Type 'y' to continue;"
                " otherwise, explain your requested changed.\n\n"
            )
            if user_input.lower() == "y":
                tool_result = self.tools_by_name[tool_call["name"]].invoke(
                    tool_call["args"]
                )
                outputs.append(
                    ToolMessage(
                        content=json.dumps(tool_result),
                        name=tool_call["name"],
                        tool_call_id=tool_call["id"],
                    )
                )
            else:
                outputs.append(
                    ToolMessage(
                        content=f"API call denied by user. Reasoning: '{user_input}'. ",
                        name=tool_call["name"],
                        tool_call_id=tool_call["id"],
                    )
                )
        return {"messages": outputs}

from langgraph.prebuilt import ToolNode, tools_condition


search_and_retrieve_node = ToolNode([suggest_hotels, retrieve_hotel_booking])
change_and_cancel_node = HumanApprovalToolNode(
    [change_hotel_booking, cancel_hotel_booking]
)

def should_continue(state):
    messages = state["messages"]
    last_message = messages[-1]
    # If there is no function call, then we finish
    if not last_message.tool_calls:
        return "end"
    elif last_message.tool_calls[0]["name"] in [
        "change_hotel_booking",
        "cancel_hotel_booking",
    ]:
        return "human_approval"
    # Otherwise if there is, we continue
    else:
        return "continue"

from langgraph.graph import END, StateGraph, MessagesState
from IPython.display import Image, display

# Create a new graph workflow
hotel_workflow = StateGraph(MessagesState)

hotel_workflow.add_node("hotel_agent", hotel_agent)
hotel_workflow.add_node("search_and_retrieve_node", search_and_retrieve_node)
hotel_workflow.add_node("change_and_cancel_node", change_and_cancel_node)

hotel_workflow.add_edge(START, "hotel_agent")

# We now add a conditional edge
hotel_workflow.add_conditional_edges(
    "hotel_agent",
    # Next, we pass in the function that will determine which node is called next.
    should_continue,
    {
        # If agent decides to use `suggest_hotels` or  `retrieve_hotel_booking`
        "continue": "search_and_retrieve_node",
        # If agent decides to use `change_hotel_booking` or  `cancel_hotel_booking`
        "human_approval": "change_and_cancel_node",
        "end": END,
    },
)


hotel_workflow.add_edge("search_and_retrieve_node", "hotel_agent")
hotel_workflow.add_edge("change_and_cancel_node", "hotel_agent")

# Set up memory
from langgraph.checkpoint.memory import MemorySaver

memory = MemorySaver()

hotel_graph_compiled = hotel_workflow.compile(
    checkpointer=memory
)

display(Image(hotel_graph_compiled.get_graph().draw_mermaid_png()))

import uuid
from langchain_core.messages import ToolMessage
thread_id = str(uuid.uuid4())

_printed = set()
config = {"configurable": {"thread_id": thread_id}}

events = hotel_graph_compiled.stream(
    {"messages": ("user", "Get details of my booking id 203")},
    config,
    stream_mode="values",
)
for event in events:
    event["messages"][-1].pretty_print()

thread_id = str(uuid.uuid4())

config = {"configurable": {"thread_id": thread_id}}

events = hotel_graph_compiled.stream(
    {"messages": ("user", "cancel my hotel booking id 203")},
    config,
    stream_mode="values",
)
for event in events:
    event["messages"][-1].pretty_print()

from langchain_core.runnables import Runnable, RunnableConfig
from langgraph.graph.message import add_messages
from typing import Annotated, Sequence, List
from langchain_core.messages import HumanMessage

from langchain_core.prompts import ChatPromptTemplate, MessagesPlaceholder
from langchain_core import __version__ as core_version
from packaging import version

core_version = version.parse(core_version)
if (core_version.major, core_version.minor) < (0, 3):
    from pydantic.v1 import BaseModel
else:
    from pydantic import BaseModel
from typing import Literal

members = ["flight_agent", "hotel_agent"]
options = ["FINISH"] + members

class routeResponse(BaseModel):
    """
    Return next agent name.
    """
    next: Literal[*options]


class AskHuman(BaseModel):
    """Ask missing information from the user"""

    question: str


prompt = ChatPromptTemplate.from_messages(
    [
        (
            "system",
            """
        Given the conversation below who should act next?
        1. To search or cancel flight return 'flight_agent'
        2. To search for hotel or cancel hotel booking return 'hotel_agent'
        3. If you have the answer return 'FINISH'
        4. When member has finished the task, and you notice FINISHED in the message then don't repeat same member again
        5. Do not return next which is not related to user query. Example if user is asking about flight then do not call 'hotel_agent'
        Or should we FINISH? ONLY return one of these {options}. Do not explain the process.

        """,
        ),
        ("placeholder", "{messages}"),
    ]
).partial(options=str(options), members=", ".join(members))

supervisor_chain = prompt | llm.with_structured_output(routeResponse)

def supervisor_agent(state):
    result = supervisor_chain.invoke(state)
    output = {
        "next": result.next,
        "messages": [
            HumanMessage(
                content=f"Supervisor decided: {result.next}", name="supervisor"
            )
        ],
    }
    print(f"Supervisor output: {output}")
    return output

supervisor_agent({"messages": [("user", "I want to book a flight")]})

class State(TypedDict):
    messages: Annotated[list, add_messages]
    next: str

full_workflow = StateGraph(State)
full_workflow.add_node("supervisor", supervisor_agent)

full_workflow.add_edge(START, "supervisor")

from langchain_core.messages import AIMessage

def agent_node(state, agent, name):
    result = agent.invoke(state)
    return {
        "messages": [HumanMessage(content=result["messages"][-1].content, name=name)]
    }

flight_node = functools.partial(agent_node, agent=flight_agent, name="flight_agent")

full_workflow.add_node("flight_agent", flight_node)

full_workflow.add_node("hotel_agent", hotel_graph_compiled)

def process_output(state):
    messages = state["messages"]
    for message in reversed(messages):
        if isinstance(message, AIMessage) and isinstance(message.content, str):
           print(message.content)
           return {
                "messages": [
                    HumanMessage(content=message.content, name="hotel_agent")
                ]
            }
    return None

full_workflow.add_node("process_output", process_output)

full_workflow.add_edge("flight_agent", "supervisor")
full_workflow.add_edge("hotel_agent", "process_output")
full_workflow.add_edge("process_output", "supervisor")

conditional_map = {k: k for k in members}
conditional_map["FINISH"] = END
full_workflow.add_conditional_edges("supervisor", lambda x: x["next"], conditional_map)

from IPython.display import Image, display

supervisor_agent_graph = full_workflow.compile(
    checkpointer=memory,
)

# display subgraph using xray=1
display(Image(supervisor_agent_graph.get_graph(xray=1).draw_mermaid_png()))

def extract_tool_id(pregel_task):
    # Navigate to the messages in the state
    messages = pregel_task.state.values.get("messages", [])

    # Find the last AIMessage
    for message in reversed(messages):
        if isinstance(message, AIMessage):
            # Check if the message has tool_calls
            tool_calls = getattr(message, "tool_calls", None)
            if tool_calls:
                # Return the id of the first tool call
                return tool_calls[0]["id"]

thread_id = str(uuid.uuid4())
config = {"configurable": {"thread_id": thread_id}}

events = supervisor_agent_graph.stream(
    {"messages": ("user", "Get details of my flight booking id 200")},
    config,
    stream_mode="values",
    subgraphs=True,
)
for event in events:
    event[1]["messages"][-1].pretty_print()

thread_id = str(uuid.uuid4())
config = {"configurable": {"thread_id": thread_id}}

events = supervisor_agent_graph.stream(
    {"messages": ("user", "cancel my hotel booking id 193")},
    config,
    stream_mode="values",
    subgraphs=True,
)
for event in events:
    event[1]["messages"][-1].pretty_print()

import sqlite3
from contextlib import closing


with closing(sqlite3.connect("data/travel_bookings.db", timeout=10.0)) as conn:
    with closing(conn.cursor()) as cursor:
        cursor.execute("""SELECT * FROM hotel_bookings""")
        #cursor.execute("""SELECT * FROM hotel_bookings where booking_id='203'""")
        for idx in range(5):
            print(cursor.fetchone())
    conn.close()

import sqlite3
from contextlib import closing


with closing(sqlite3.connect("data/travel_bookings.db", timeout=10.0)) as conn:
    with closing(conn.cursor()) as cursor:
        cursor.execute("""SELECT * FROM flight_bookings""")
        #cursor.execute("""SELECT * FROM hotel_bookings where booking_id='203'""")
        for idx in range(5):
            print(cursor.fetchone())
    conn.close()
