(Optional) Connect Open WebUI to LiteLLM

Open WebUI is a web frontend that allows users to interact with LLMs. It supports locally running LLMs using Ollama, and OpenAI-compatible remote endpoints. In this implementation, we are configuring a remote endpoint that points to LiteLLM to show how LiteLLM allows for accessing Bedrock through an OpenAI-compatible interface.

Pre-requisites

A domain that can be used for hosting Open WebUI, a web frontend that allows users to interact with LLMs; it will be used to test LiteLLM setup.
A digital certificate in AWS Certificate Manager (ACM) for enabling TLS on Open WebUI

Open WebUI deployment

Configure environment variables; replace <open-webui-hostname>, <open-webui-cert-arn> with the corresponding hostnames and ACM certificates ARN.

export OPEN_WEBUI_HOSTNAME="<open-webui-hostname>"
export OPEN_WEBUI_CERTIFICATE_ARN="<open-webui-cert-arn>"

echo "export OPEN_WEBUI_HOSTNAME=${OPEN_WEBUI_HOSTNAME}" | tee -a ~/.bash_profile
echo "export OPEN_WEBUI_CERTIFICATE_ARN=${OPEN_WEBUI_CERTIFICATE_ARN}" | tee -a ~/.bash_profile

Install Open WebUI:

helm repo add open-webui https://helm.openwebui.com/
helm repo update

helm upgrade \
    --install open-webui open-webui/open-webui \
    --namespace open-webui \
    --create-namespace \
    -f bedrock-litellm/helm/open-webui-private-values.yaml

The first user signing up will get admin access. So, initially, Open WebUI will be only accessible from within the cluster to securely create the first/admin user. Subsequent sign ups will be in pending state till they are approved by the admin user.

Use kubectl port-forward to allow access to Open WebUI from the machine used for installation:
```
kubectl port-forward service/open-webui -n open-webui  8080:80
```
If you are using Cloud9, you can access Open WebUI by clicking "Preview" (top bar), then "Preview Running Application".
Sign-up (remember, first signed up user get admin access), then go to User icon at top right, settings, admin settings, connections, then edit OpenAI API to be as follows:
```
http://litellm-service.default.svc.cluster.local:4000/v1
```

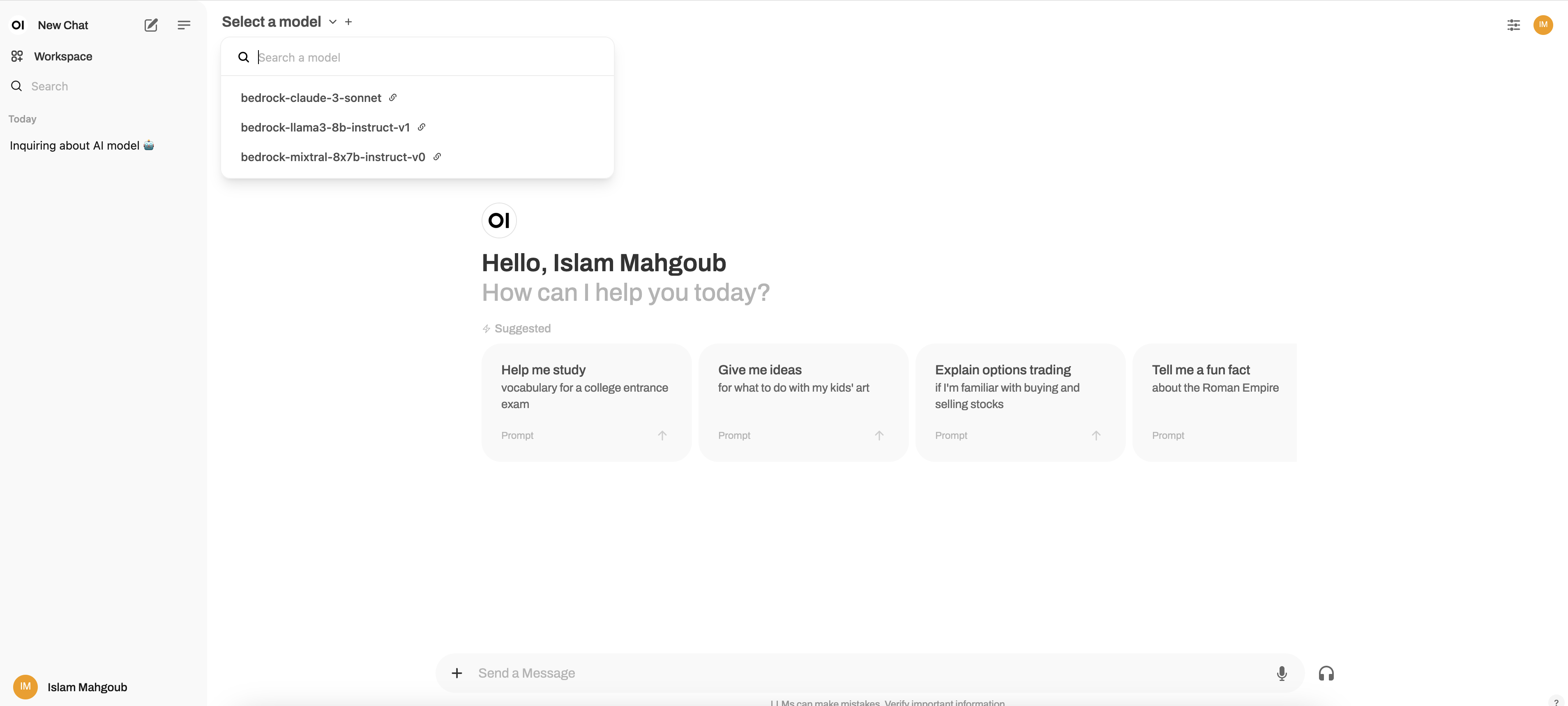

Click on "Verify connection" button to make sure connectivity is in-place, then save. You should be able to see three of the Bedrock models available in Open WebUI as depicted in the screenshot below:

Now, we have the admin user created, we can make Open WebUI accessible publicly.
Update Open WebUI helm release to include Ingress object for exposing it:
```
envsubst < $BEDROCK_LITELLM_DIR/helm/open-webui-public-values.yaml | helm upgrade \
    open-webui open-webui/open-webui \
    --namespace open-webui \
    -f -
```
Note

ELB needs a minute or so to complete the target registration; if the URL above did not work for you, wait for a few seconds for the registration to get completed.

Extract Open WebUI URL:

kubectl -n open-webui get ingress open-webui  -o jsonpath='{.status.loadBalancer.ingress[*].hostname}'

Add a CNAME record for <open-webui-hostname> (check prerequisities section) that points to the ALB host name, then access Open WebUI using <open-webui-hostname>.
Edit litellm/proxy_config.yaml, update the IAM policy litellm-bedrock-policy.json, and enable access through the Bedrock console to add more Bedrock models on LiteLLM.
