Architecture Overview¶

The One Observability Demo is deployed using AWS CDK with a multi-stage pipeline architecture. The infrastructure is organized into five deployment stages across two waves, plus a standalone microservices stage.

CDK Pipeline Architecture¶

flowchart LR
    Source --> Synth
    Synth --> CoreWave
    subgraph CoreWave["Core Wave"]
        Core["Core Stage"]
        Containers["Containers Stage"]
    end
    CoreWave --> BackendWave
    subgraph BackendWave["Backend Wave"]
        Storage["Storage Stage"]
        Compute["Compute Stage"]
    end
    BackendWave --> Microservices["Microservices Stage"]

Wave Execution¶

1. Core Wave executes first:

   • Core Stage — Networking, security, observability infrastructure
   • Containers Stage — Builds container images for all 6 microservices via CodePipeline

2. Backend Wave executes after Core Wave:

   • Storage Stage — Databases, queues, object storage (with post-deployment DynamoDB and RDS seeding)
   • Compute Stage — ECS cluster, EKS cluster, load balancers

3. Microservices Stage executes last:

   • Deploys all 6 microservices, Lambda functions, canaries, and WAF associations

Architecture Diagrams¶

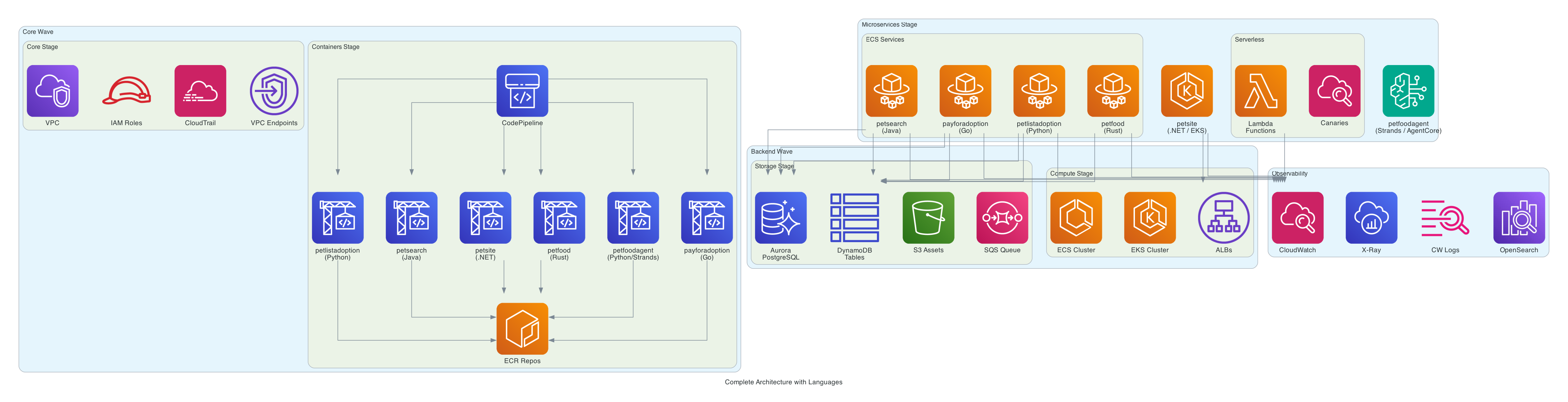

Complete Architecture¶

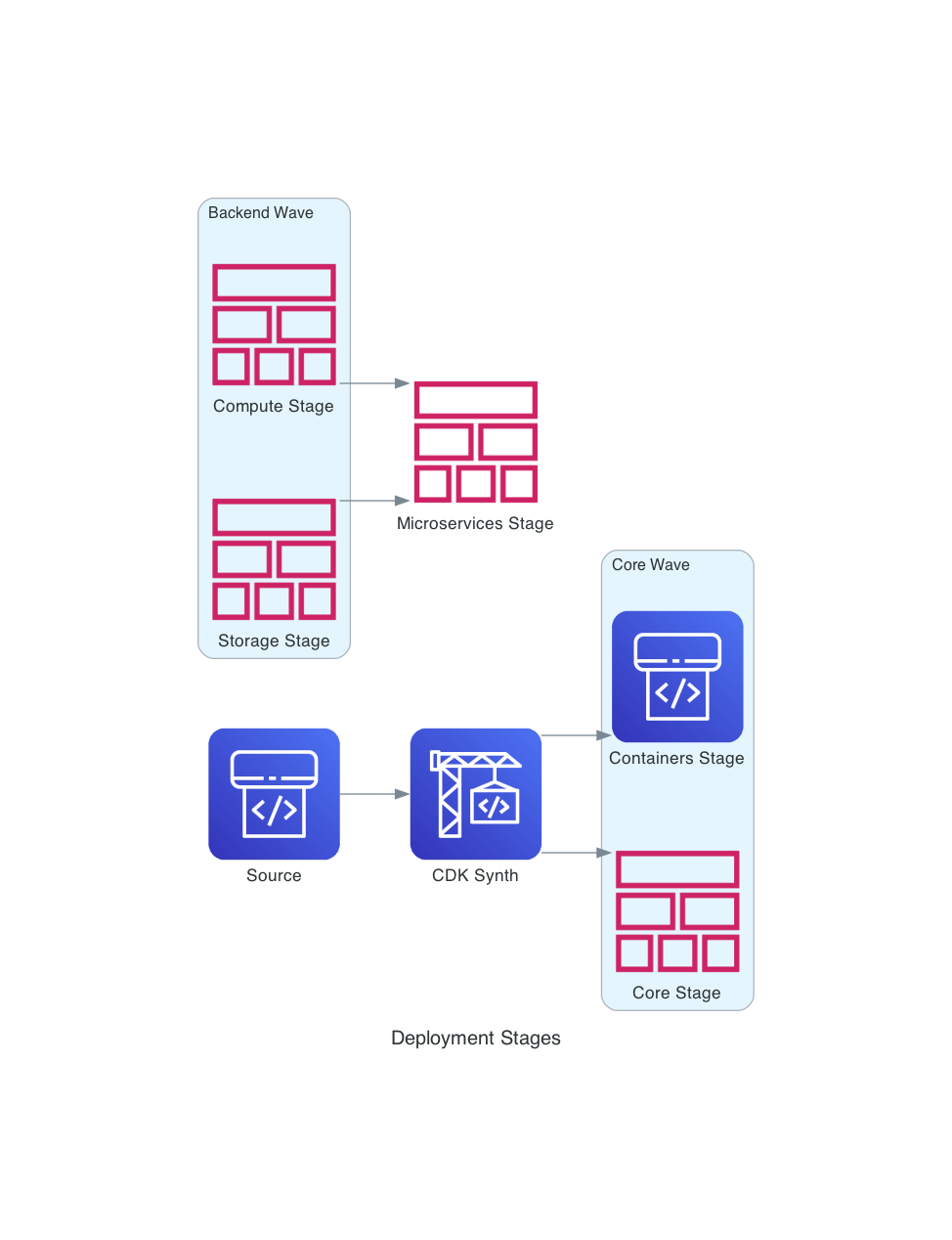

Deployment Stages¶

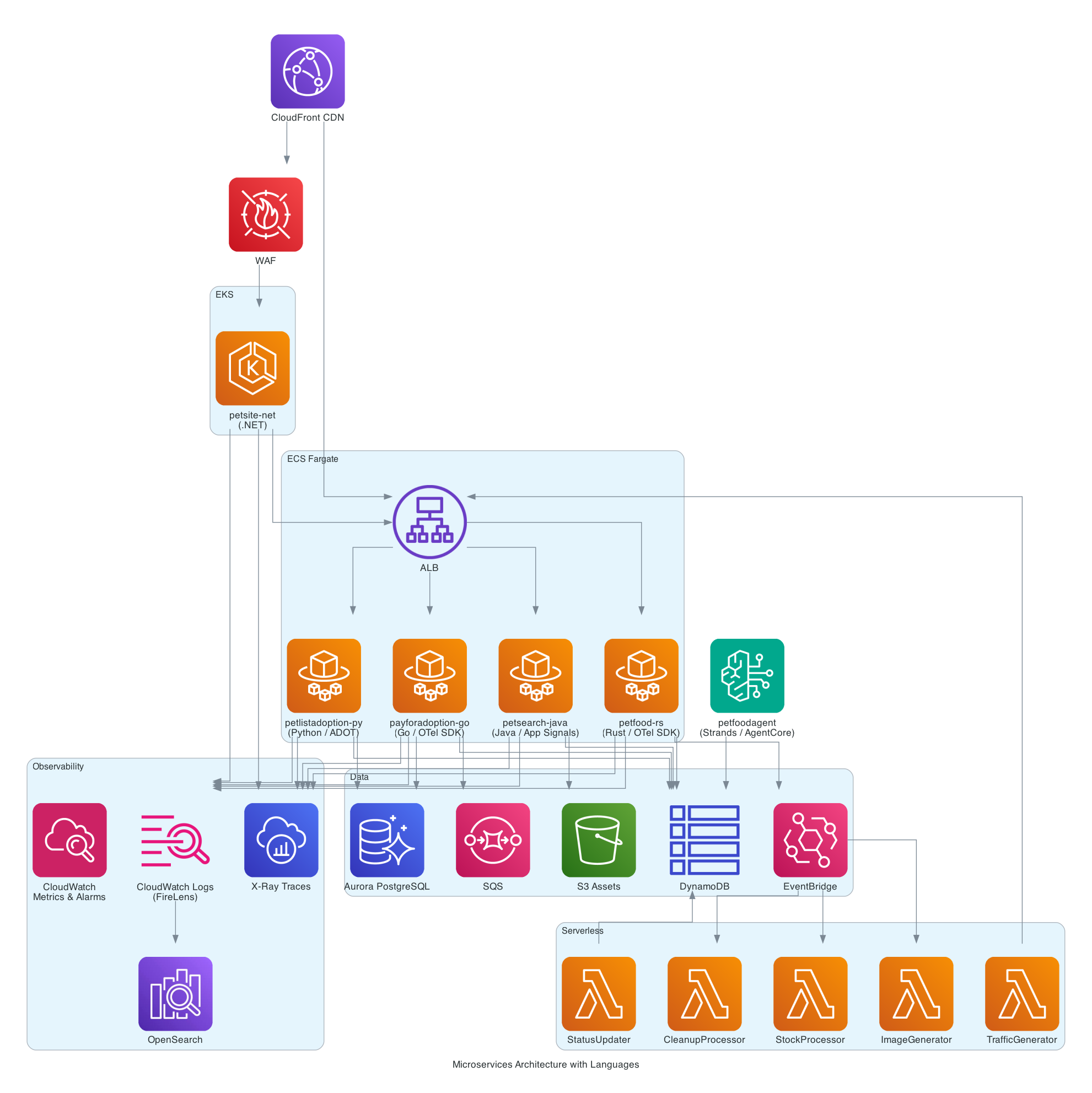

Microservices Runtime¶

Security¶

• VPC Isolation — Private subnets for all compute, VPC endpoints for AWS API calls
• IAM Least Privilege — Per-service task roles with minimal permissions
• Encryption — S3 SSE, DynamoDB encryption at rest, Aurora encryption
• WAF — Regional and global web ACLs
• CDK Nag — Automated security compliance checking

Configuration¶

The pipeline supports two source modes:

• CodeConnection (GitHub) — Set codeConnectionArn for direct repository integration
• S3 Bucket — Fallback mode using configBucketName for source code zip

Configuration parameters can be stored in SSM Parameter Store and retrieved during synthesis via retrieve-config.sh.
