Running ThreatForest

This guide explains how to run ThreatForest using the interactive wizard, what happens during analysis, and how to manage your workflow.

Launching ThreatForest

The interactive wizard is the primary way to run ThreatForest:

threatforest

This launches a guided interface that walks you through the entire analysis process.

The Interactive Wizard

Welcome Screen

When you launch ThreatForest for the first time, you'll see:

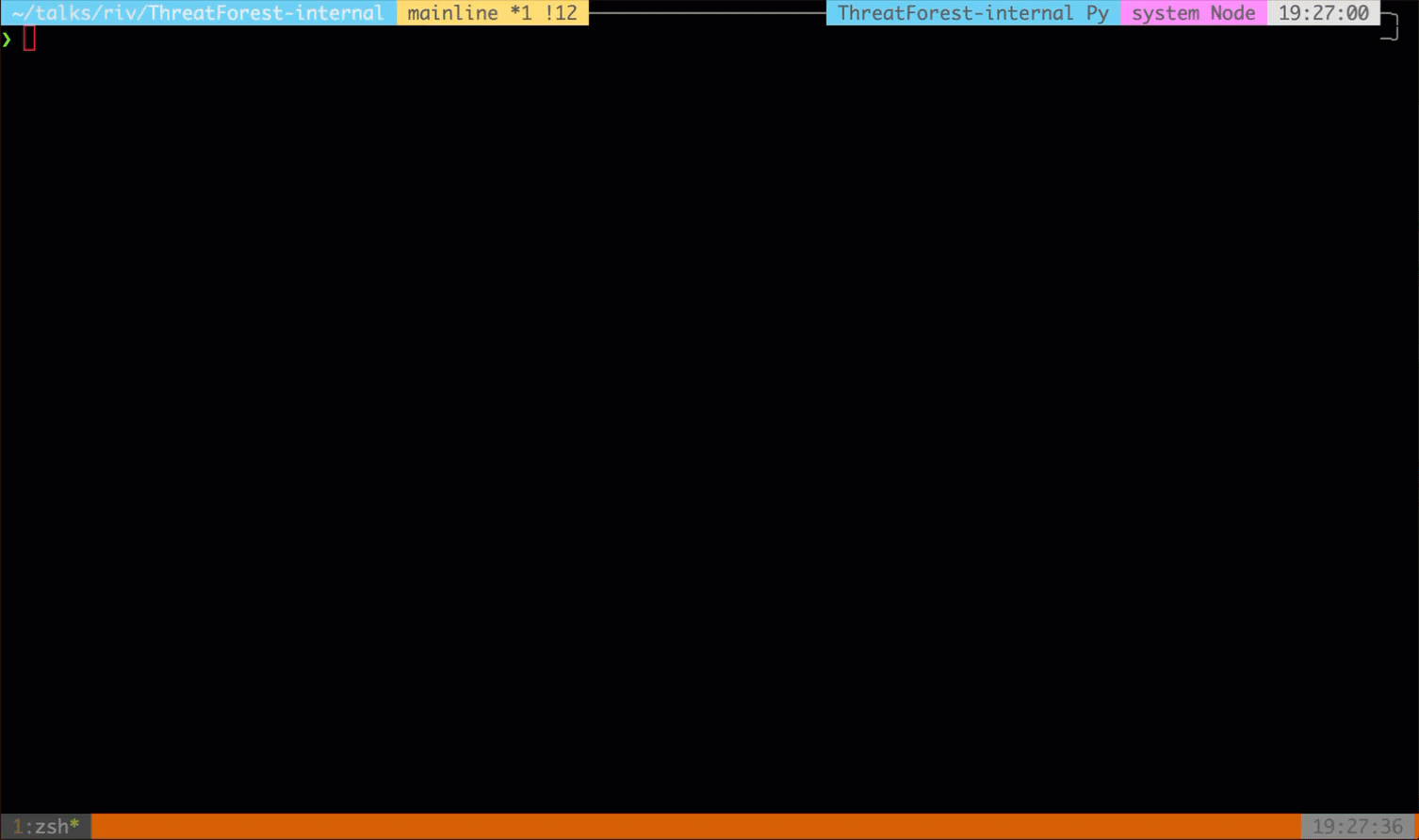

ThreatForest Welcome ScreenInitial welcome screen and wizard launch

The wizard will guide you through the initial setup and then the analysis workflow.

Step 1: Workflow Selection

Choose your workflow mode:

Full Analysis (Recommended) - Complete end-to-end threat modeling - Analyzes your project from scratch - Generates attack trees with MITRE ATT&CK mappings - Includes mitigation recommendations - Creates interactive dashboard

This is what most users need and what this guide focuses on.

Step 2: Project Path

Enter the path to your project directory:

Project Path Selection

What ThreatForest Looks For: - ThreatComposer files (*.tc.json) - Documentation (README.md, ARCHITECTURE.md) - Architecture diagrams (PNG, PDF, Mermaid) - Threat model files (JSON, YAML, Markdown)

Step 3: AWS Configuration

If using AWS Bedrock, you'll be prompted for AWS details:

AWS Configuration

What's Happening: - ThreatForest uses your AWS profile credentials - Validates access to AWS Bedrock - Confirms the selected model is available

Step 4: Model Selection

Choose your AI model:

Model Selection

Step 5: Confirmation

Review your settings before starting:

Analysis Summary

During Analysis

Progress Tracking

Once analysis begins, you'll see real-time progress:

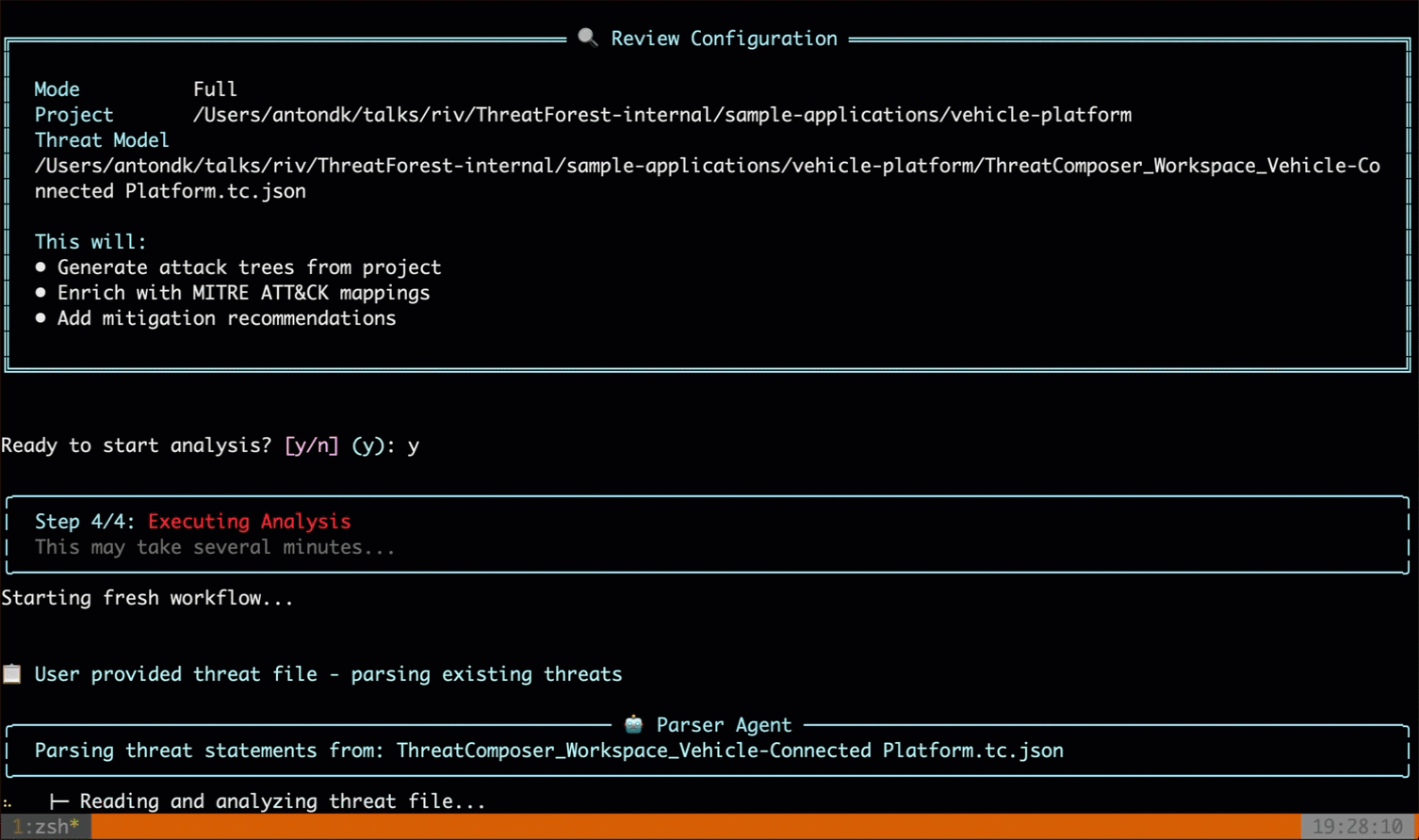

Analysis Progress

What Each Stage Does:

  1. Setup & Validation - Validates configuration and project structure
  2. Context Analysis - Discovers and categorizes project files
  3. Information Extraction - Analyzes documentation and diagrams
  4. Attack Tree Generation - Creates detailed attack trees for each threat
  5. TTP Enrichment - Maps attack steps to MITRE ATT&CK techniques
  6. Mitigation Mapping - Adds security controls and recommendations
  7. Report Generation - Creates dashboard and analysis report

Individual Threat Progress

For each threat being processed:

Processing Threat: T001 - SQL Injection in Login Form
├─ Analyzing threat context...                    ✓
├─ Generating attack paths...                     ✓
│  ├─ Path 1: Direct SQL injection               ✓
│  ├─ Path 2: Blind SQL injection                ✓
│  └─ Path 3: Second-order SQL injection         ✓
├─ Mapping MITRE ATT&CK techniques...            ✓
├─ Adding mitigation recommendations...           ✓
└─ Writing attack tree file...                    ✓

Completed in 45 seconds

Estimated Time Remaining

ThreatForest shows estimated completion time:

⏱️ Estimated Time Remaining: 3 minutes

Based on:
- 5 threats to process
- 2 threats completed (avg 40s each)
- 3 threats remaining

When Analysis Completes

Success Message

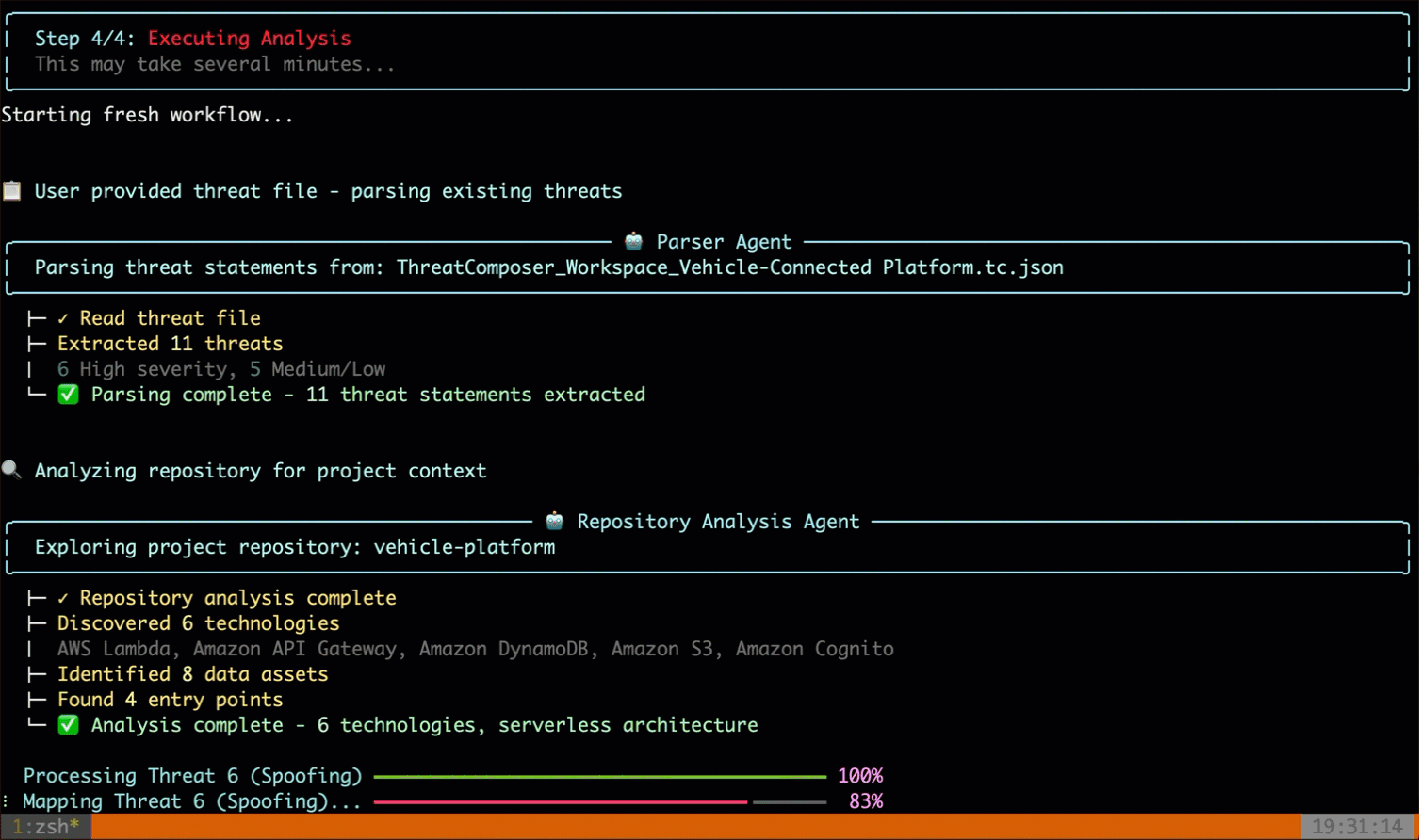

Analysis Complete

Next Steps

After completion, you can:

  1. View Dashboard - Interactive HTML visualization
  2. Read Attack Trees - Individual markdown files
  3. Export Data - JSON file for automation
  4. Review Report - Executive summary

Learn More: - Understanding Your Results - Explore all outputs - How ThreatForest Works - Technical deep dive

Handling Errors

ThreatForest includes automatic error handling and recovery. Common errors are documented in the FAQ Troubleshooting section.

Next Steps
