Understanding Your Results¶

After ThreatForest completes analysis, you'll have a comprehensive set of outputs. This guide explains what you get, how to explore it, and how to use the results effectively.

Output Directory Structure¶

ThreatForest creates a threatforest/ directory in your project:

project/
└── threatforest/
    └── attack_trees/
        ├── .threatforest_state.json          # State tracking
        ├── attack_tree_T001_sql_injection.md # Individual attack trees
        ├── attack_tree_T002_xss_attack.md
        ├── attack_tree_T003_auth_bypass.md
        ├── attack_trees_dashboard.html       # ⭐ Interactive visualization
        ├── threatforest_data.json            # JSON export
        └── threatforest_analysis_report.md   # Summary report

Interactive Dashboard ⭐ PRIMARY INTERFACE¶

The HTML dashboard is your main way to explore results.

Opening the Dashboard¶

# Mac
open ./project/threatforest/attack_trees/attack_trees_dashboard.html

# Linux
xdg-open ./project/threatforest/attack_trees/attack_trees_dashboard.html

# Windows
start ./project/threatforest/attack_trees/attack_trees_dashboard.html

Dashboard Overview¶

The dashboard provides:

Visual Threat Overview - See all threats at a glance
Interactive Network Graph - Explore attack trees visually
Search and Filter - Find specific threats or techniques
MITRE ATT&CK Integration - View mapped techniques
Metrics and Statistics - Understand threat landscape

Main Sections¶

1. Threat Overview Panel¶

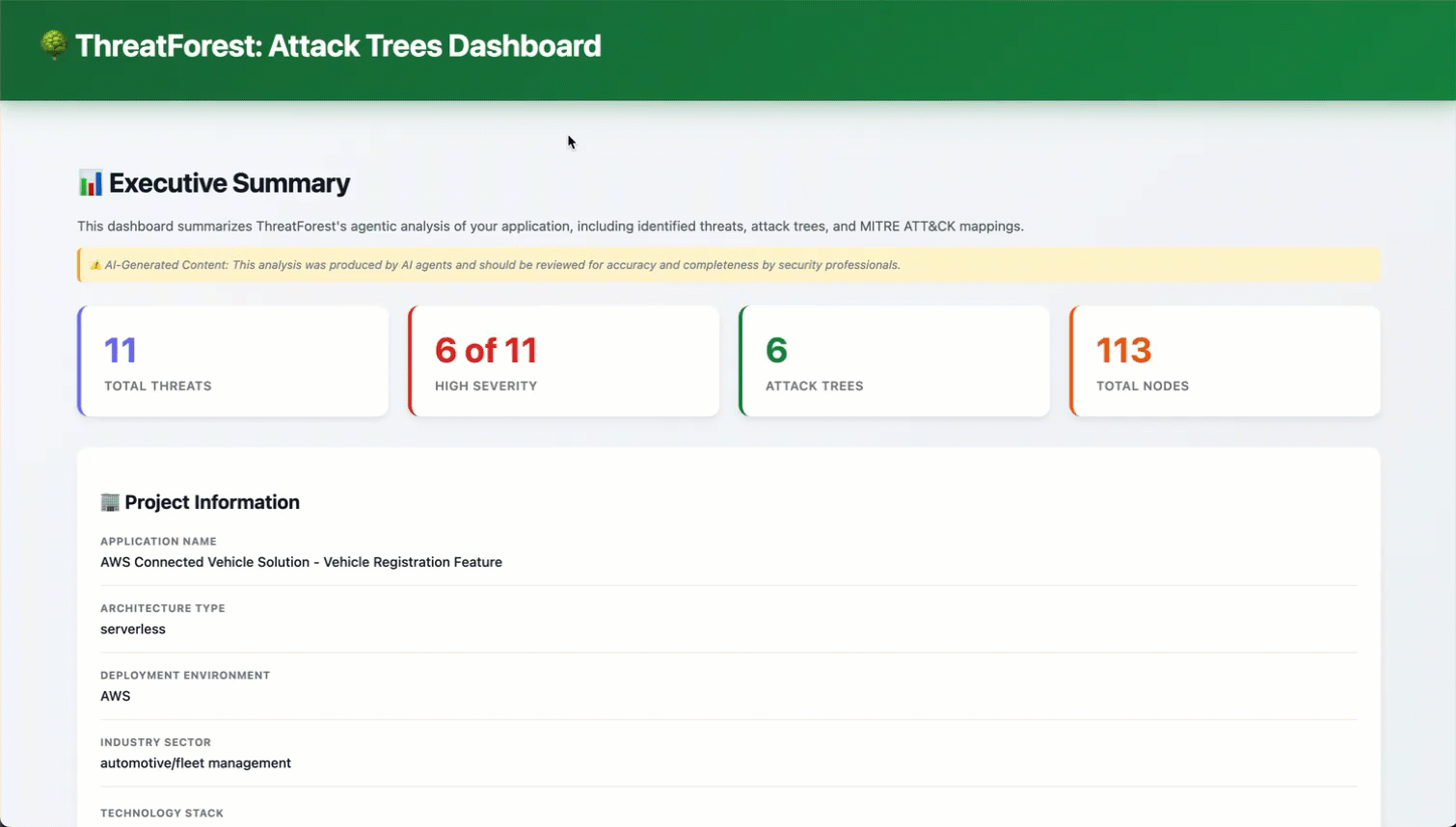

Executive Summary Threats

2. Interactive Network Graph¶

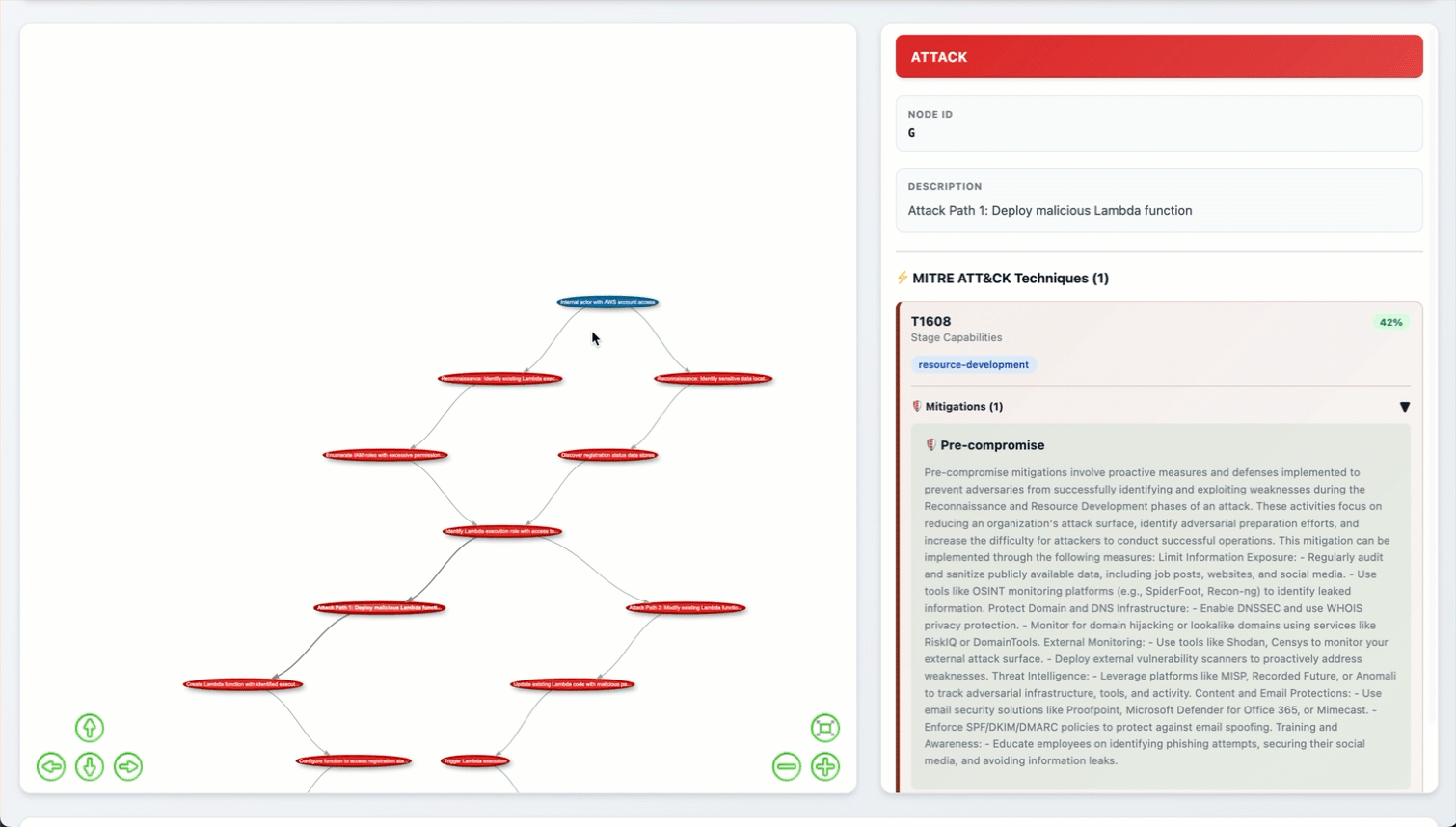

Explore Attack Steps

Center of dashboard - Visual representation of all threats:

Features: - Color-coded by severity (Red=High, Orange=Medium, Yellow=Low) - Click nodes to view details - Zoom and pan to navigate - Hover for quick preview - Drag to reposition

Interactions:

Click Node - View threat details in side panel
Hover Node - See quick preview
Drag Node - Reposition for better view
Scroll - Zoom in/out
Click Background - Deselect and reset

3. Threat Detail Panel¶

Explore Mitigations and Navigate to MITRE

Right sidebar (appears when threat selected):

Sections:

Threat Information - Full statement, severity, affected components
Attack Paths - Step-by-step sequences with impact ratings
MITRE ATT&CK Mappings - Technique IDs, tactics, confidence scores
Mitigations - Security controls and implementation guidance

Using the Dashboard¶

For Security Architects¶

Workflow:

Review overview to understand threat landscape
Focus on high-severity threats
Examine attack paths to understand vectors
Validate architecture controls
Export findings for documentation

Key Features:

Network graph for architecture visualization
Attack path analysis for control validation
MITRE mapping for industry alignment

For Security Engineers¶

Workflow:

Filter by category for specific threat types
Review technical attack steps
Check MITRE techniques for detection alignment
Implement security control guidance
Track remediation progress

Key Features:

Detailed attack steps
Technical prerequisites
Mitigation implementation guidance

For Developers¶

Workflow: 1. Search by component to find relevant threats 2. Understand how attacks work 3. Identify vulnerable conditions 4. Apply security fixes 5. Verify all threats are addressed

Key Features:

Component-specific filtering
Clear attack explanations
Actionable mitigation steps

Dashboard Performance¶

Optimization for Large Threat Models:

Use filters to reduce visible threats
Collapse details when not needed
Export subsets for focused analysis

Performance Metrics:

<10 threats: Instant loading
10-50 threats: <2 seconds
50-100 threats: <5 seconds
100+ threats: May require filtering

Browser Compatibility:

✅ Chrome 90+
✅ Firefox 88+
✅ Safari 14+
✅ Edge 90+

Individual Attack Tree Files¶

Each threat gets a dedicated markdown file with complete details.

File Pattern¶

attack_tree_T###_*.md

Contents¶

Threat Metadata:

ID and title
Severity level
STRIDE category
Affected components

Attack Paths:

Multiple paths per threat
Step-by-step sequences
Prerequisites for each step
Impact and likelihood ratings

MITRE ATT&CK Mappings:

Technique IDs and names
Tactic categorization
Confidence scores
Technique descriptions

Mitigations:

Security control recommendations
Implementation guidance
Best practices
Priority rankings

Mermaid Diagrams:

Visual attack tree representation
Shows attack flow and dependencies

Example Structure¶

# Attack Tree: SQL Injection in User Login

**Threat ID:** T001
**Severity:** High
**Category:** Injection

## Description
Attacker exploits insufficient input validation in the login form...

## Attack Paths

### Path 1: Direct SQL Injection via Login Form

**Likelihood:** High | **Impact:** Critical

**Attack Steps:**

1. Identify login endpoint
   - **MITRE ATT&CK:** T1190 - Exploit Public-Facing Application
   - **Prerequisites:** Login form accessible
   - **Mitigation:** M1050 - Exploit Protection

2. Test for SQL injection
   - **MITRE ATT&CK:** T1190 - Exploit Public-Facing Application
   - **Prerequisites:** Input validation not implemented
   - **Mitigation:** M1027 - Password Policies

3. Craft bypass payload
   - **MITRE ATT&CK:** T1078 - Valid Accounts
   - **Prerequisites:** Error messages reveal structure
   - **Mitigation:** M1027 - Password Policies

...

## Mermaid Diagram
[Visual representation]

Use Cases¶

Security code reviews
Developer training materials
Penetration testing guidance
Security documentation
Version control tracking

JSON Data Export¶

File: threatforest_data.json

Purpose: Structured data for programmatic access and tool integration.

Schema¶

{
  "metadata": {
    "analysis_date": "2025-11-28T14:30:00Z",
    "threatforest_version": "1.0.0",
    "project_name": "MyApp",
    "total_threats": 8,
    "high_severity_count": 3,
    "medium_severity_count": 4,
    "low_severity_count": 1
  },
  "threats": [
    {
      "id": "T001",
      "title": "SQL Injection in User Login",
      "severity": "High",
      "category": "Injection",
      "description": "...",
      "affected_components": ["Login API", "User Database"],
      "attack_paths": [...],
      "mitre_techniques": [...],
      "mitigations": [...]
    }
  ]
}

Use Cases¶

Custom reporting tools
CI/CD integration
Security dashboards
Metrics tracking
Data analysis

Example Usage¶

import json

# Load threat data
with open('threatforest_data.json', 'r') as f:
    data = json.load(f)

# Count high-severity threats
high_severity = [t for t in data['threats'] if t['severity'] == 'High']
print(f"High-severity threats: {len(high_severity)}")

# Extract MITRE techniques
techniques = set()
for threat in data['threats']:
    for tech in threat.get('mitre_techniques', []):
        techniques.add(tech['technique_id'])
print(f"Unique MITRE techniques: {len(techniques)}")

Analysis Report¶

File: threatforest_analysis_report.md

Purpose: Executive summary with key findings and statistics.

Contents¶

Analysis overview
Threat statistics
Severity distribution
Key findings
Recommendations
Coverage metrics

Example¶

# ThreatForest Analysis Report

**Project:** MyApp E-Commerce Platform
**Analysis Date:** 2025-11-28 14:30:00

## Executive Summary

Analysis identified 8 threats, with 3 classified as high severity
requiring immediate attention.

## Threat Statistics

- Total Threats: 8
- High Severity: 3 (37.5%)
- Medium Severity: 4 (50%)
- Low Severity: 1 (12.5%)

## Key Findings

### Critical Threats

1. **T001: SQL Injection in User Login**
   - Impact: Database compromise
   - Recommendation: Implement parameterized queries

2. **T002: Authentication Bypass via JWT**
   - Impact: Unauthorized access
   - Recommendation: Strengthen JWT validation

...

## Recommendations

### Immediate Actions
1. Address all high-severity threats within 30 days
2. Implement input validation across all inputs
3. Review authentication mechanisms

...

Use Cases¶

Executive briefings
Security review meetings
Audit documentation
Compliance reporting

State File¶

File: .threatforest_state.json

Purpose: Tracks workflow progress for resume capability.

Contains:

Processed threats
Current progress
Timestamp information
Configuration snapshot

Note: Automatically managed by ThreatForest. Do not edit manually.

Working with Results¶

Version Control¶

Recommended Approach:

# Commit threat models
git add threats/*.tc.json
git commit -m "Update threat model"

# Commit generated outputs
git add threatforest/
git commit -m "Update threat analysis"

# Tag releases
git tag -a v1.0-threat-analysis -m "Initial threat analysis"

Dashboard for Presentations:

Host on internal web server for team access
Export to PDF for email distribution
Screenshot key findings for reports

JSON for Automation:

CI/CD integration
Custom dashboards
Metrics tracking

Markdown for Documentation:

Include in security docs
Version control friendly
Easy to review in PRs

Comparing Versions¶

# Compare attack trees
diff threatforest/attack_trees/attack_tree_T001.md \
     threatforest-old/attack_trees/attack_tree_T001.md

# Compare JSON data
jq -S . threatforest/attack_trees/threatforest_data.json > current.json
jq -S . threatforest-old/attack_trees/threatforest_data.json > previous.json
diff current.json previous.json

Best Practices¶

Organization¶

Keep outputs in version control
Use consistent naming conventions
Archive old analyses with timestamps
Document analysis dates in commit messages

Maintenance¶

Regenerate after threat model changes
Review outputs quarterly
Track remediation progress
Update when architecture changes

Security¶

Don't expose outputs publicly (contains sensitive info)
Use internal hosting only for dashboard
Sanitize data before external sharing
Encrypt archives if needed

Need Help?¶

Having issues with results or the dashboard? Check the FAQ Troubleshooting section for solutions.

Next Steps¶

Running ThreatForest - Learn the analysis process
Preparing Your Project - Optimize inputs
How ThreatForest Works - Technical deep dive
