Changes Since Last Assessment

After each assessment run, the framework compares each account’s results with that account’s previous run and writes a “Changes since last assessment” report next to the run’s main report. It shows which findings were resolved, which are still open, which regressed, which are new, and which no longer appear.

• What you get
• Turning it on or off
• When it runs
• Which run is “the previous run”
• What is compared
• Change states
• How findings are matched between runs
• Reading the report
• The changes CSV
• Build log messages
• Re-runs, redeployments, and moved files
• Comparing two runs yourself
• Known limits
• For developers

What you get

For every account whose run completed, in the same folder as that run’s main report (<AssessmentBucket>/<account_id>/):

File	What it is
security_assessment_changes_<YYYYMMDD_HHMMSS>.html	Interactive page: summary counts, counts by assessment area, and a filterable table of findings by change
security_assessment_changes_<YYYYMMDD_HHMMSS>.csv	The same results, one row per finding, with both runs’ details, statuses, and severities

The timestamp is when the current run’s results were saved, in UTC, so the name identifies the run it describes. Running the comparison again for the same two runs overwrites the file instead of adding another.

In single-account mode the build also writes a small run record, assessment_history_run_<execution_id>.json, after every run. It says whether the run’s Step Functions execution succeeded; see Which run is “the previous run”.

The first run of an account has nothing to compare with, so no changes report is written for it. Every later run gets one, including runs where nothing changed (“No changes since the last assessment”).

A sample page and CSV are in sample-reports/ (security_assessment_changes.html and .csv), built from the single-account sample report. Resource IDs and the random parts of resource names in them are made-up values of the same shape, so they don’t match the sample main report.

Turning it on or off

The report is controlled by the EnableAssessmentHistory deployment parameter in both deployment/aiml-security-single-account.yaml and deployment/2-aiml-security-codebuild.yaml:

Value	Effect
true (default)	A changes report is written after each run
false	The comparison is skipped; the build log says Changes report disabled (EnableAssessmentHistory=false)

The parameter reaches the build as the ENABLE_ASSESSMENT_HISTORY CodeBuild environment variable. Stacks created before the parameter existed don’t have the variable, and are treated as true. A change takes effect on the next build.

Findings CSVs are saved every run whatever the setting, so after turning the report back on, the next run compares with the most recent usable run, including runs made while it was off. Run records are written only while the setting is on, so runs made while it was off are judged by their files alone.

When it runs

The comparison runs in the CodeBuild post-build phase (buildspec.yml), after the run’s results are in the central AssessmentBucket:

• Single-account: after the results are synced to the central bucket, and only if the Step Functions execution succeeded. The run record is written first, whether the execution succeeded or not.
• Multi-account: once per account, after the multi-account report is created and before the build’s failure summary. Accounts whose run failed get no changes report; the build log names them and gives the reasons from the build’s failure list.

It can’t fail an assessment run:

• Any problem is printed as a WARNING line and the build carries on.
• Each account is handled on its own, so one account’s problem doesn’t stop the others.
• The step has a time limit of one minute per account, and at least 5 minutes, but never more than the build time left. It’s skipped when less than 6 minutes of build time are left. Accounts not started before the limit get a WARNING line, and a summary line counts them.
• In multi-account builds the accounts are started in an order that moves along one account with each CodeBuild build number, so if the limit is reached, it isn’t always the same accounts that miss out.
• The CSV is written before the page, so if the page can’t be written, the CSV is still there.

It reads only the findings CSVs already in the bucket, and in single-account mode the run records. No changes were made to the scanners, the AWS SAM templates, the Step Functions workflow, or the IAM roles.

Which run is “the previous run”

Runs are told apart by the Step Functions execution ID in each findings CSV’s name. Execution IDs are random, so runs are ordered by when S3 saved their files; a run’s time is its latest file’s time.

The previous run is the most recent usable run saved before the current run. A run is usable when:

• Its files are complete. Every core service the run selected (Bedrock, SageMaker, AgentCore, AWS Agent Registry), and OWASP if it ran, has a CSV with at least one row for every region the run’s CSV names show (its core CSVs, or its OWASP CSVs when no core service was selected), and the Responsible AI GRC CSV, if present, has at least one row. This follows the main report’s own completeness check, but from the files alone: the main report knows which regions the run was asked to scan and which options were on, and the files don’t. So a run that failed partway can still look complete.

• Its run record, if it has one, says it succeeded. In single-account mode the build writes assessment_history_run_<execution_id>.json after every run. A Step Functions execution only succeeds when the main report’s completeness check passes, so a run recorded as failed is never used. Runs with no record (made before this was added, or while the setting was off) are judged by their files alone. In multi-account mode the build uploads a run’s files only after checking them, so no records are written.

• Runs that aren’t usable are skipped and named in the build log, with the reason.
• An older run with a CSV that can’t be read is skipped the same way, and the next older run is tried. A current run with a CSV that can’t be read gets no report.
• Runs saved after the current run (for example, from another build running at the same time) are ignored and noted in the log.
• Two runs saved in the same second are ordered by execution ID, so the choice is always the same.
• Only the current run and the chosen previous run are read.

Service selection. A service turned off with the deployment’s Enable*Assessment switches writes no CSV, so its CSVs aren’t required. Which services a run selected comes from:

• the current run: the build’s ENABLE_BEDROCK, ENABLE_SAGEMAKER, ENABLE_AGENTCORE, and ENABLE_AGENT_REGISTRY settings (a missing setting means selected);
• an earlier single-account run: its run record, which lists the selected services;
• any other earlier run (multi-account runs, and single-account runs whose record doesn’t list the selection): the services it has CSVs for. In multi-account mode the build uploads an account’s files only after finding a CSV for each selected service, so a service with no CSV there wasn’t selected.

A selected service with no CSV still makes a run incomplete. A run with all four services off (Responsible AI GRC and OWASP only) is usable.

Runs made before release 2.0.0 have no AWS Agent Registry CSV and no run record, so they are judged by their files: AWS Agent Registry counts as not selected in that run and isn’t compared, and checks added in 2.0.0 are listed as found in only one run.

What is compared

Only what ran in both runs is compared:

• Core services (Bedrock, SageMaker, AgentCore, AWS Agent Registry) are compared only if both runs selected them. Otherwise the report says “Not compared: not selected in both runs”, and the service’s sidebar count and row in the counts by area say so instead of showing zero; the headline counts leave it out and the note under them names it.
• Optional modules (Responsible AI GRC, OWASP) are compared only if both runs have them. Otherwise the report says “Not compared: enabled in only one run”.
• Regions are compared only if both runs scanned them (taken from the core CSV names). Otherwise the report says “Not compared: scanned in only one run”. Global rows (account-level findings) are always compared. A row whose Region lists several regions is compared when every listed region was scanned in both runs.

Check IDs that appear in only one run (for example, after upgrading the framework) are listed in the report as a note.

Change states

Previous run	Current run	Change
Failed	Passed	Resolved
Failed	Failed	Still open
Passed	Failed	Regressed
Not present, or N/A	Failed	New
Failed	Not present	No longer reported
Failed	N/A	No longer assessed

All other combinations have no Failed result in either run (for example, Passed → Passed or Passed → N/A) and are shown as Not failing.

Failed → N/A is not counted as resolved, because N/A also covers access-denied and unavailable-region results.

How findings are matched between runs

Rows are grouped by assessment area, Region, and Check_ID. The Finding title isn’t part of the group: many checks use one title when they fail and another when they pass or can’t be assessed (for example, SM-04 writes “GuardDuty Not Enabled”, “GuardDuty Enabled”, or “GuardDuty Check Error”). Some checks write one row per resource (for example, one row per IAM role), with the resource only in Finding_Details. Within a group, rows are paired in these steps:

1. Same title, identical details. Rows with the same Finding and Finding_Details are paired. Then, rows with the same Finding are paired whose details are the same once values that change on every run are blanked out:

   Changing value	Written by
   (N days)	AC-03 (and AG-17, mapped from it), AR-02
   N days ago	FS-31 (and OW-09, mapped from it)
   on YYYY-MM-DD, since YYYY-MM-DD	BR-14, SM-02

   Only these values are blanked. Digits in general are not, because resource names contain digits. A test fails if a scanner starts writing another day count or date into Finding_Details without it being added to this list.

2. Same details, new title. Rows whose details match, blanked the same way, are paired even if the title changed (for example, a title renamed in a new release).
3. One row each. Two remaining rows are paired even if their title and details differ, if each is its run’s only row in the group, or its run’s only row with that title. If both are Failed and their details differ, the row shows as Still open and is marked “details changed” (see Known limits).
4. Several rows and one summary row. If one run has several Failed rows left and the other run’s only row for the check isn’t Failed (a Passed summary such as “All 3 models have network isolation enabled”, or an N/A error row), each Failed row is paired with that row. Several Failed rows and a Passed summary show as Resolved; a Passed summary and several Failed rows show as Regressed.
5. Everything else is unpaired, and shows as New or No longer reported.

A pair is made only when it’s unambiguous: if two rows would pair with the same row in steps 1 and 2, none of them are paired. The CSV’s Match_Rule column records which step paired each row (exact, normalized, details, single-row, check-level, or unmatched), so any result can be traced. A check-level summary row appears once for each row it’s paired with.

Repeated rows within a run are dropped first, with the same rule the main report uses.

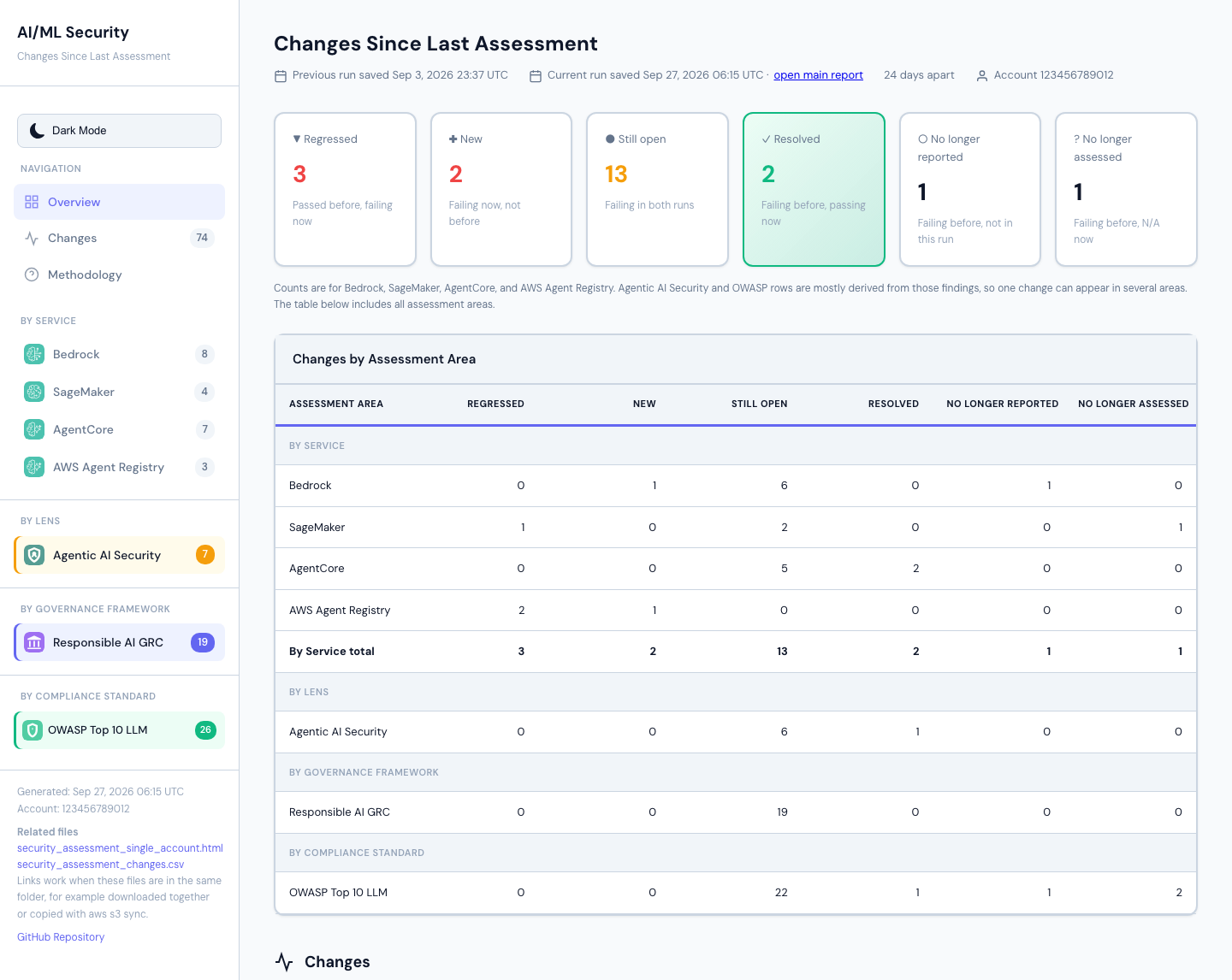

Reading the report

The page uses the main report’s layout, styling, and light/dark setting (the choice carries over between the two reports).

• Header: both runs’ save times (UTC), how many days apart they are (counted by calendar date), and the account. When the current run’s main report can be identified with certainty, the header links to it.
• Summary counts: Regressed, New, Still open, Resolved, No longer reported, and No longer assessed, for the four services only (Bedrock, SageMaker, AgentCore, AWS Agent Registry), or those of them selected in both runs; the note under the counts names any service left out. With none of the four selected in both runs, the counts show “—”. Most Agentic AI Security and OWASP rows are derived from service findings, so one change can appear in several areas; counts are shown per area and not added across areas.
• Counts by area: under the main report’s headings (By Service, By Lens, By Governance Framework, By Compliance Standard).
• Changes table: the main report’s columns, with Change in place of Status; under each change, the two runs’ statuses (for example Passed → Failed). Filters for search, Region, Assessment Area, Severity, and Change. By default the table shows every change state and hides Not failing rows; choose All Findings in the Change filter to show them. A Still open row whose two Failed rows were paired only because each run had one, with different details, reads Failed → Failed · details changed and has a note under its details. Clicking an area in the sidebar filters the table to it.
• Severity: the current run’s, except for No longer reported and No longer assessed rows, which show the previous run’s (the current one is missing or just “Informational”).
• Details: when a finding’s details differ between the runs, both versions are shown, labeled “previous run” and “current run”.

The sidebar lists the main report and the changes CSV by file name. The links work when the files are in the same folder, for example downloaded together or copied with aws s3 sync; opening the page straight from the S3 console opens one file at a time. The main report has no link to a single finding: use its search box, for example with the Check ID.

The changes CSV

One row per compared finding, in these columns:

Column	Contents
Account_ID	The account
Assessment_Area	bedrock, sagemaker, agentcore, agent-registry, agentic, responsible-ai-grc, or owasp
Region, Check_ID, Finding	As in the findings CSVs
Change	One of the change states above, including Not failing
Previous_Status, Current_Status	Passed, Failed, N/A, or Not present
Previous_Severity, Current_Severity	Each run’s severity (blank when not present)
Previous_Finding_Details, Current_Finding_Details	Each run’s details (blank when not present)
Resolution, Reference	From the current run, or the previous run when the finding is gone
Match_Rule	exact, normalized, details, single-row, check-level, or unmatched
Previous_Execution_ID, Current_Execution_ID	The two runs compared

A cell that starts with =, +, -, @, a tab, or a carriage return gets a leading ' so spreadsheet programs don’t run it as a formula; finding text can contain resource names chosen by anyone who can create resources.

Build log messages

Message	Meaning
Changes report for account <id>	Start of that account’s comparison
Compared run <id> (saved <time>) with run <id> (saved <time>), N day(s) apart	The two runs used
No changes since the last assessment	Nothing changed; the report is still written
Written: s3://...	Where the report was written
No previous run for account <id>; changes report skipped. If this stack was redeployed, or earlier results were moved or deleted, they aren't compared. ...	First run for the account, or no usable earlier run in the bucket
Skipped run <id> saved <time>: incomplete (...)	An incomplete run passed over
Skipped run <id> saved <time>: the assessment run did not succeed (...)	Its run record says the Step Functions execution didn’t succeed
Skipped run <id> saved <time>: its run record <file> can't be read	The run record isn’t valid, so the run isn’t used
Skipped run <id> saved <time>: unreadable (...)	One of the run’s CSVs can’t be read; the next older run is tried
Skipped N more run(s)	More than five runs were passed over
Not compared (not selected in both runs): <service> (<which run>)	A core service selected in only one of the two runs, or in neither; it’s left out of the comparison and the counts
No core service was selected in both runs, so there are no headline counts; see the changes CSV	Only Responsible AI GRC or OWASP were compared
WARNING: ENABLE_<SERVICE>='<value>' is not true or false; the services with CSVs are taken as selected	A service switch has an unexpected value
WARNING: ENABLE_<SERVICE> is '<value>', not true or false, so the run record does not list the selected services	Single-account: the record is still written; later runs judge this run by its files
WARNING: Could not write the assessment run record s3://...	Single-account: no record for this run; it will be judged by its files
WARNING: No execution ID was saved, so no assessment run record was written	Single-account: the run didn’t start
Ignored N run(s) saved after the current run: ...	Runs newer than the current run
Not read: <file> (unknown findings file type)	A findings CSV from a module this version doesn’t know
WARNING: Changes report cannot be completed for account <id>. Reason(s): ...	No report for that account; the reasons are listed
WARNING: Changes report skipped: only Ns of build time left	Too little build time left
WARNING: The time limit was reached with N of M account(s) not started: ...	The accounts that got no report this build; the next build starts with a different account
Starting with account <id>: the account order moves along one account with each build number	Multi-account: which account went first this build
WARNING: The changes page for account <id> could not be written; the CSV was. Reason: ...	Only the CSV was written for that account
Changes report skipped: the assessment run did not succeed	Single-account run failed
Changes report disabled (EnableAssessmentHistory=false)	The setting is off

Re-runs, redeployments, and moved files

• Re-runs. Every run is the same build; there is no separate “first run” setting. Start a run from CodeBuild (Start build) or on a schedule (see Can I schedule automated assessments?). Each run is compared with the most recent usable run before it.
• Redeploying. History lives in the infrastructure stack’s AssessmentBucket. Updating the stack keeps it. Deleting and recreating the stack creates a new bucket, so history starts over. Switching between single-account and multi-account uses a different bucket, so the first run after switching has no previous run.
• Moving, copying, or renaming files. Don’t move, copy, or rename files inside an account’s results folder. To archive, copy them somewhere else and leave the originals. To restore a deleted file, use S3 versioning (it’s on for the bucket). A file copied back into the folder gets a new save time, so an old run can look like the newest; the report header always shows both runs’ dates, so a comparison with an unexpected run is visible.
• Custom execution names. Starting executions by hand with custom names isn’t supported for history; the build always uses generated IDs.

Comparing two runs yourself

The same code compares any two runs on your computer. Copy each run’s findings CSVs into its own folder (for example with aws s3 cp --recursive --exclude "*" --include "*_security_report_<execution_id>*"), then run from the repository root:

.venv/bin/python -m assessment_history compare \
  --account 123456789012 \
  --previous-dir ./previous-run \
  --current-dir ./current-run \
  --output-dir ./changes

Each folder must hold one complete run. The setting is ignored in this mode.

Known limits

• When a check writes one row per resource and each run has exactly one Failed row, those rows are paired even if they name different resources. For example, fixing notebook A while notebook B starts failing shows as one Still open row, not Resolved plus New. The row is marked “details changed” so it can be checked; both runs’ details are shown. Some checks write one summary row for many resources (for example a count of roles); a change inside that row shows the same way. Telling the two kinds of check apart would need a list of every check’s row format, which is planned as a follow-up.
• A check that lists several resources in one row (for example, AC-03 lists every stale role) shows as No longer reported plus New when the list changes, because the rows can’t be paired with certainty.
• OWASP rows are compared as one module. When a service is selected in one run and not the other, the OWASP rows built from that service’s findings are still compared, so they can show as No longer reported, No longer assessed, or New. The service’s own rows are left out.
• The comparison is always with the most recent usable run. Month, quarter, and year views are planned as a follow-up.
• Runs are ordered by save time, so files copied back into a results folder can change which run is picked (see above).

For developers

Path	Contents
assessment_history/models.py	Record shapes, change states, CSV columns
assessment_history/normalize.py	The changing values blanked out in matching step 1
assessment_history/compare.py	The comparison (no AWS calls)
assessment_history/discover.py	Finding and reading an account’s runs in S3 or a local folder
assessment_history/render_common.py, render_changes.py	The HTML page, using the main report’s styling
assessment_history/__main__.py	The command line the build runs
tests/test_assessment_history_*.py	Tests; tests/assessment_history_helpers.py builds test data
tests/fixtures/assessment_history/	A hand-written example account folder, and the golden saved answers (golden/expected_*.json)
sample-reports/scripts/build_changes_sample.py	Builds the sample page and CSV and the golden saved answers
sample-reports/scripts/capture_changes_screenshot.py	Captures sample-reports/changes-overview.png from the sample page

Run the tests with the package’s 100% line and branch coverage bar (CI runs the same check):

.venv/bin/python -m pytest tests/test_assessment_history_*.py \
  --cov=assessment_history --cov-branch --cov-report=term-missing \
  --cov-fail-under=100

The golden tests use both sample reports: each is turned back into the findings CSVs the scanners write (in a temporary folder; only the saved answers are committed), and a current run is made by applying a short list of edits (EDITS in the script) that covers every change state and each matching step. Values that AWS generated in the sample reports (resource IDs, the random parts of resource names) are replaced with made-up values of the same shape first, and a test fails if any of them reaches a committed file. After changing a sample report or a comparison rule, regenerate and review the diff:

.venv/bin/python sample-reports/scripts/build_changes_sample.py

--check makes no changes and exits 1 if anything is out of date. To refresh the screenshot afterwards:

./sample-reports/scripts/capture_changes_screenshot.py

It uses the same browser setup as capture_screenshots.py, but captures only the changes page and doesn’t rewrite any report.
