Redshift Data Query MCP - Amazon Redshift Database Integration

Amazon Redshift Data Query MCP integration with Amazon QuickSuite. This solution creates an MCP integration that enables read-only access to Amazon Redshift clusters through QuickSuite using MCP Actions with AWS LAB Redshift MCP Server.

Architecture

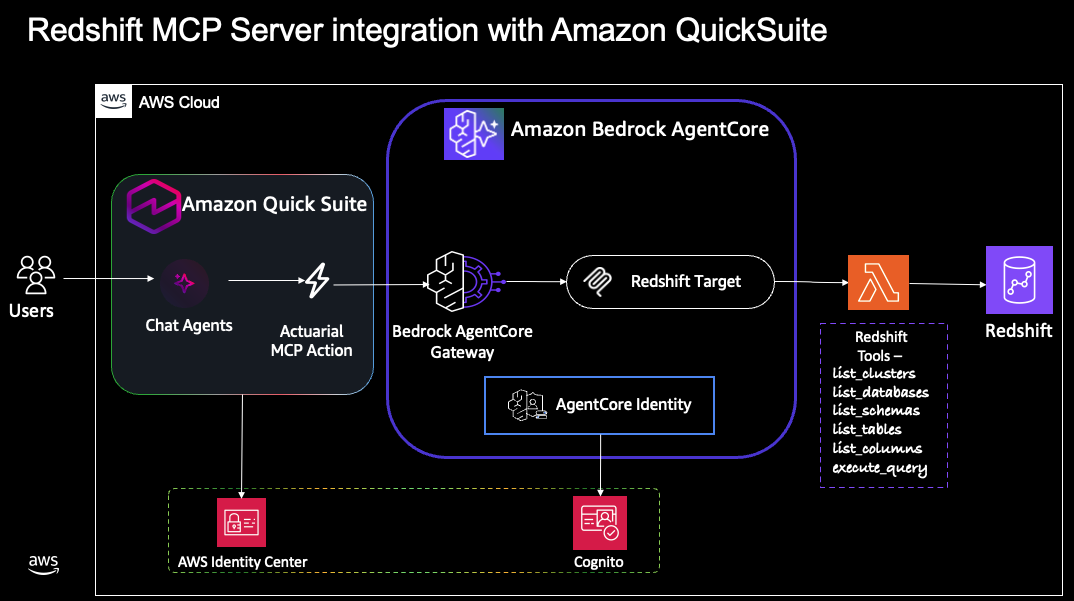

Amazon Redshift Data Query MCP Architecture

Components:

  • AgentCore Gateway: Amazon Bedrock AgentCore Gateway with Lambda target
  • Lambda Wrapper: Wraps AWS LAB Redshift MCP Server for AgentCore compatibility
  • AWS LAB Redshift MCP Server: Official AWS LAB MCP server implementation
  • QuickSuite Integration: MCP Actions for conversational AI
  • Amazon Redshift: Cluster discovery and SQL query execution

Purpose

This MCP integration enables:

  • Direct Redshift Access: Query Amazon Redshift clusters through natural language
  • QuickSuite Integration: Integration using MCP Actions
  • AgentCore Gateway: Gateway with Lambda target and authentication
  • Read-Only Operations: Secure database discovery and query execution

Project Structure

redshift-data-query-mcp/
 app.py                              # CDK deployment entry point
 cdk.json                            # CDK configuration
 pyproject.toml                      # Project dependencies
 uv.lock                             # Dependency lock file
 tools/                              # Lambda function code
    redshift_agentcore_lambda.py   # AgentCore MCP handler
    redshift_agentcore_tools.json  # MCP tool definitions
    requirements.txt               # Lambda dependencies
 cdk/                               # Infrastructure code
    redshift_agentcore_stack.py   # AgentCore Gateway stack
    README.md                      # CDK deployment guide
 README.md                          # This file

Quick Start

Prerequisites

  • AWS CLI configured with appropriate permissions
  • Node.js (for AWS CDK)
  • Python 3.12+ with uv package manager
  • Docker (required for Lambda dependency bundling)

1. Clone Repository (Sparse Checkout)

# Clone repository with sparse checkout
git clone --filter=blob:none --sparse https://github.com/aws-samples/sample-amazon-quick-suite-knowledge-hub.git
cd sample-amazon-quick-suite-knowledge-hub

# Configure sparse checkout for this integration only
git sparse-checkout set docs/integration/actions/MCP/redshift-data-query-mcp
cd docs/integration/actions/MCP/redshift-data-query-mcp

2. Deploy AgentCore Gateway

npm install -g aws-cdk
uv sync
cdk deploy --require-approval never

3. Get Outputs

Option 1: AWS Console (Recommended)

  1. Go to AWS CloudFormation in the AWS Console
  2. Find the RedshiftAgentCoreStack stack
  3. Click on the Outputs tab
  4. Copy the required values for Quick Suite integration

Option 2: CLI Commands

aws cloudformation describe-stacks --stack-name RedshiftAgentCoreStack --query 'Stacks[0].Outputs'

Key outputs for QuickSuite Actions:

  • GatewayUrl - AgentCore Gateway endpoint
  • ClientId - OAuth2 client ID
  • ClientSecret - OAuth2 client secret

Available Tools

Redshift Tools (redshift_agentcore_lambda.py)

Tool Purpose Input Output
list_clusters Discover available Redshift clusters and serverless workgroups None cluster_mapping, configurations
list_databases List databases in a Redshift cluster cluster_identifier database_list, metadata
list_schemas List schemas in a database cluster_identifier, database_name schema_list, metadata
list_tables List tables in a schema cluster_identifier, database_name, schema_name table_list, metadata
list_columns List columns in a table cluster_identifier, database_name, schema_name, table_name column_list, data_types
execute_query Execute SQL queries (read-only) cluster_identifier, database_name, sql query_results, rows

list_clusters

Purpose: Discover available Redshift clusters and serverless workgroups Input: None Output: Cluster mapping with identifiers, types, status, endpoints

list_databases

Purpose: List databases in a Redshift cluster Input: cluster_identifier (required): Target cluster identifier Output: Database list with names, owners, types

list_schemas

Purpose: List schemas in a database Input: - cluster_identifier (required): Target cluster identifier - schema_database_name (required): Database name

Output: Schema list with names, owners, types

list_tables

Purpose: List tables in a schema Input: - cluster_identifier (required): Target cluster identifier - table_database_name (required): Database name - table_schema_name (required): Schema name

Output: Table list with names, types, remarks

list_columns

Purpose: List columns in a table Input: - cluster_identifier (required): Target cluster identifier - column_database_name (required): Database name - column_schema_name (required): Schema name - column_table_name (required): Table name

Output: Column list with names, data types, constraints

execute_query

Purpose: Execute SQL queries (read-only) Input: - cluster_identifier (required): Target cluster identifier - database_name (required): Database name - sql (required): SQL query string

Output: Query results with columns and rows

QuickSuite Integration

Complete guide to integrate Amazon Redshift with Amazon QuickSuite using MCP Actions.

Prerequisites

From your CDK deployment, you'll need:

  • GatewayUrl - AgentCore Gateway endpoint
  • ClientId - Cognito Client ID
  • ClientSecret - Cognito Client Secret
  • CognitoTokenUrl - OAuth2 token endpoint

Configure MCP Action in QuickSuite

Step 1: Access Integrations

  1. Navigate to Integrations in Amazon QuickSuite
  2. Click on Actions
  3. Click the + button for Model Context Protocol

Step 2: Configure MCP Server Fill in the MCP configuration:

  • Name: Amazon Redshift Data Query
  • Description: Amazon Redshift database operations with read-only access
  • MCP Server Endpoint: Paste your GatewayUrl from CDK deployment outputs
  • Click Next

Step 3: Configure Authentication

  1. For Authentication, select Service Authentication
  2. Keep Service-to-service OAuth within the Authentication type field

  3. Fill in the authentication values from your CDK deployment outputs:

  4. Client ID → Paste your ClientId (ensure no leading/trailing spaces)

  5. Client Secret → Paste your ClientSecret (ensure no leading/trailing spaces)
  6. Token URL → Paste your CognitoTokenUrl

Step 4: Complete Setup

  1. Click Create and Continue
  2. Select Next
  3. Select Next

Usage in QuickSuite

"List all available Redshift clusters"
"Show me databases in cluster my-cluster"
"What tables are in the public schema of database dev?"
"Execute query: SELECT COUNT(*) FROM sales WHERE date > '2024-01-01'"

Troubleshooting

MCP Authentication Issues:

  • Verify OAuth2 credentials in QuickSuite MCP Actions
  • Check Cognito token endpoint configuration
  • Ensure client secret is correctly copied

Redshift Access:

  • Verify Amazon Redshift cluster exists and is accessible
  • Check IAM permissions for Redshift Data API
  • Confirm cluster status is available

AgentCore Gateway:

  • Monitor AgentCore Gateway throttling limits
  • Check Lambda timeout and memory settings
  • Review CORS configuration for QuickSuite

Documentation

License

This library is licensed under the MIT-0 License. - CognitoTokenUrl - OAuth2 token endpoint

Configure MCP Action in Amazon Quick Suite

Step 1: Access Integrations

  1. Navigate to Integrations in Amazon Quick Suite
  2. Select Actions
  3. Select the + button for Model Context Protocol

Step 2: Configure MCP Server Complete the MCP configuration:

  • Name: Amazon Redshift Database Operations
  • Description: Amazon Redshift cluster discovery and SQL query execution
  • MCP Server Endpoint: Enter your GatewayUrl from AWS CDK deployment outputs
  • Select Next

Step 3: Configure Authentication

  1. For Authentication, select Service Authentication
  2. Keep Service-to-service OAuth within the Authentication type field

  3. Enter the authentication values from your AWS CDK deployment outputs:

  4. Client ID → Enter your ClientId (ensure no leading/trailing spaces)

  5. Client Secret → Enter your ClientSecret (ensure no leading/trailing spaces)
  6. Token URL → Enter your CognitoTokenUrl

Step 4: Complete Setup

  1. Select Create and Continue
  2. Select Next
  3. Select Next

Usage in Amazon Quick Suite

Example queries:

"List all available Redshift clusters"
"Show me databases in cluster my-redshift-cluster"
"List tables in the public schema"
"Execute SELECT * FROM sales_data LIMIT 10"
"Run SELECT COUNT(*) FROM customer_orders WHERE status = 'completed'"

Troubleshooting

MCP Authentication Issues:

  • Verify OAuth2 credentials in Amazon Quick Suite MCP Actions
  • Check Amazon Cognito token endpoint configuration
  • Ensure client secret is correctly copied without extra spaces

Amazon Redshift Access:

  • Verify Amazon Redshift clusters exist and are accessible
  • Check AWS Identity and Access Management (IAM) permissions for Amazon Redshift services
  • Confirm cluster status is available

Amazon Bedrock Agent Runtime:

  • Monitor Amazon Bedrock Agent Runtime throttling limits
  • Check AWS Lambda timeout and memory settings
  • Review Cross-Origin Resource Sharing (CORS) configuration for Amazon Quick Suite

Deployment Issues:

  • Ensure AWS credentials are configured: aws configure
  • Check AWS CDK bootstrap: cdk bootstrap
  • Verify Python 3.9+ and Node.js are installed
  • For uv issues, use pip as fallback: pip install -e .

Documentation

Security

See CONTRIBUTING for more information.

License

This library is licensed under the MIT-0 License. See the LICENSE file.
