MS Outlook - Action Setup Guide

1) Sign in to the Microsoft Entra admin center as at least an Application Developer.

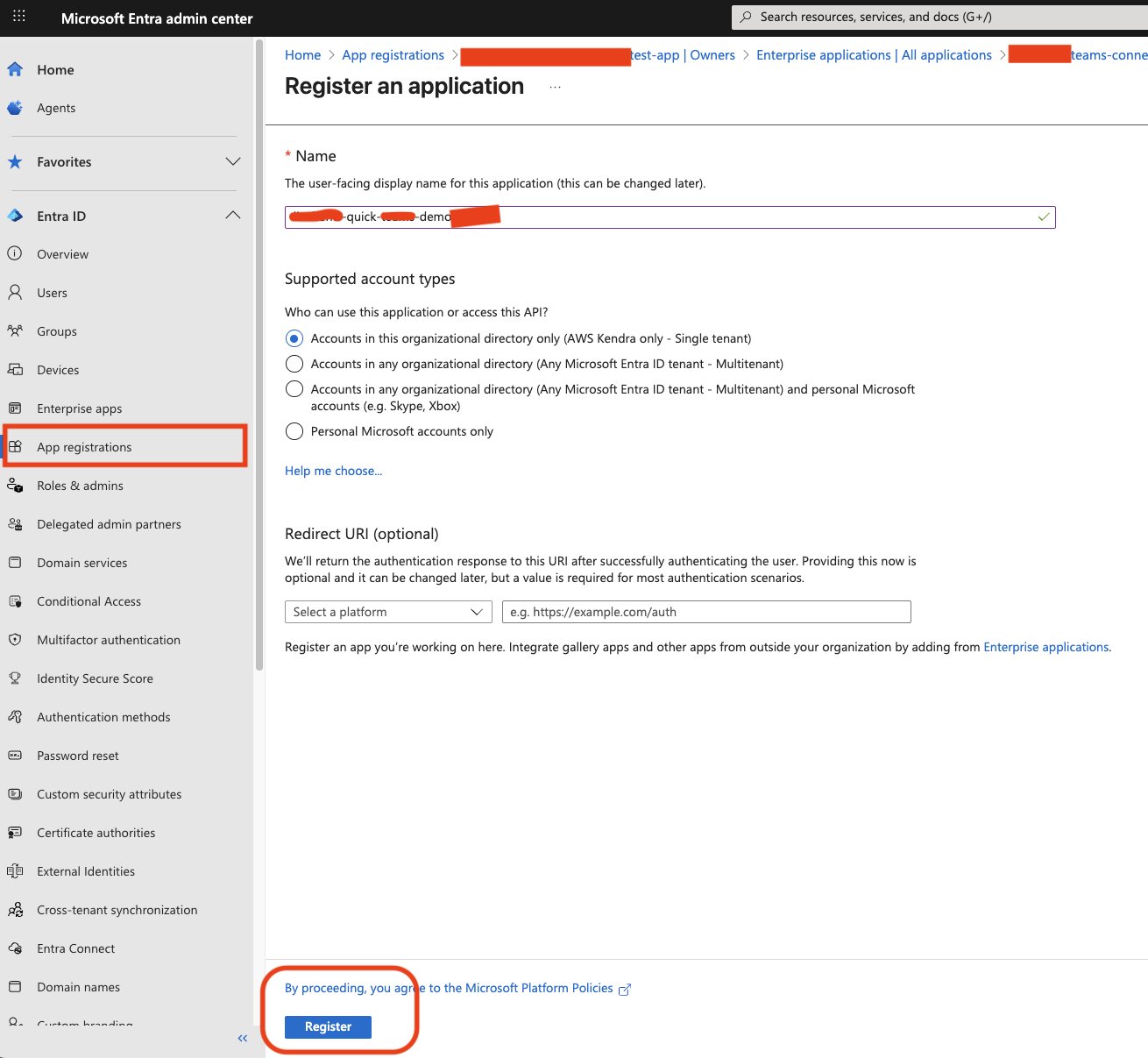

2) Browse to Entra ID => App registrations and select New registration

Choose Single tenant and provide optional Web platform with Redirect URI:

https://us-east-1.quicksight.aws.amazon.com/sn/oauthcallback

Click Register button:

3) Navigate to this app registration => API permissions => Add a permission => Microsoft Graph API:

Note: Leave the pre-selected User.Read there.

From Application permissions, select:

• Mail.Read
• Mail.Send
• Calendars.ReadWrite

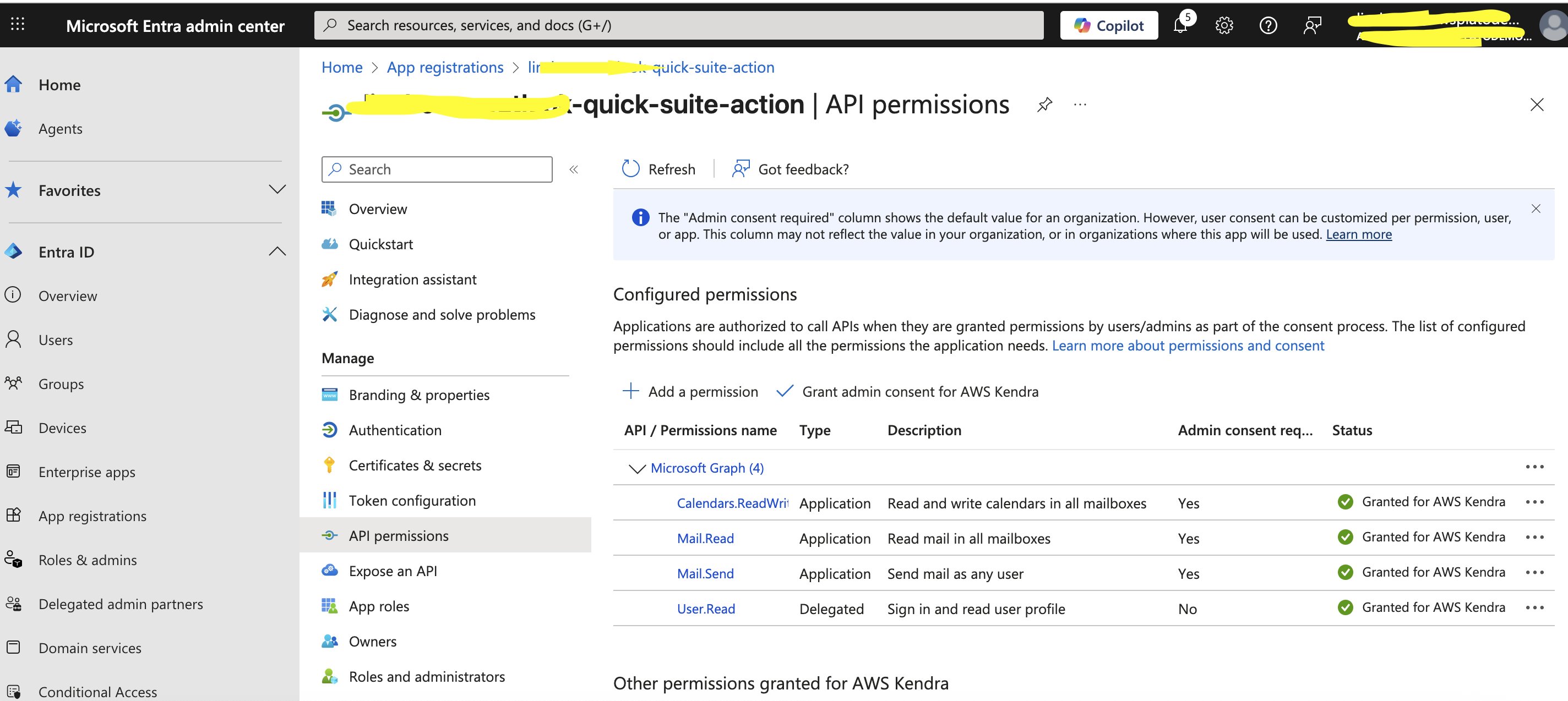

Then click on Grant admin consent for , you'll see a total of 4 permissions as below:

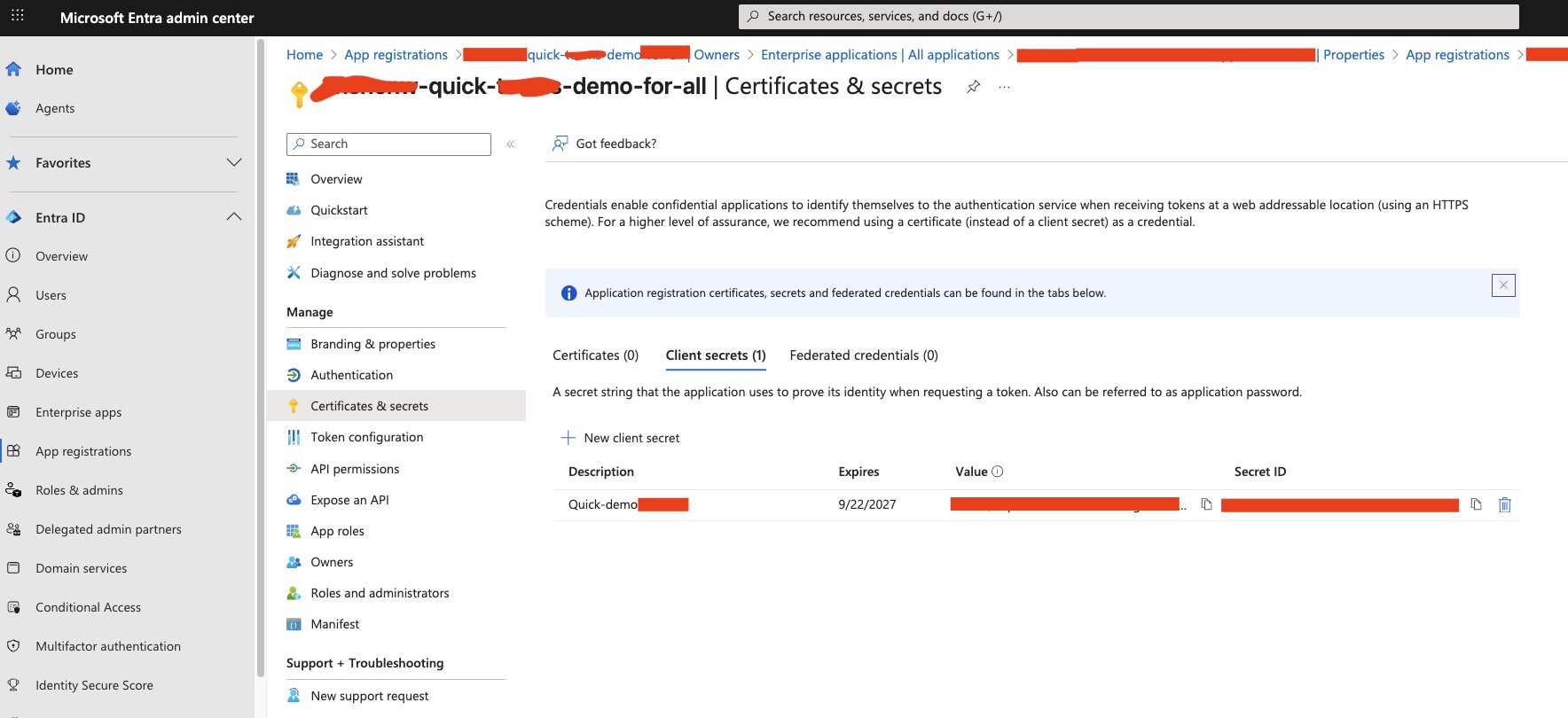

4) From Certificates & secrets => Client secrets => + New client secret, copy client secret value

(Note: only copy the secret Value, NOT the Secret ID)

5) Also copy the Client ID and Tenant ID from there:

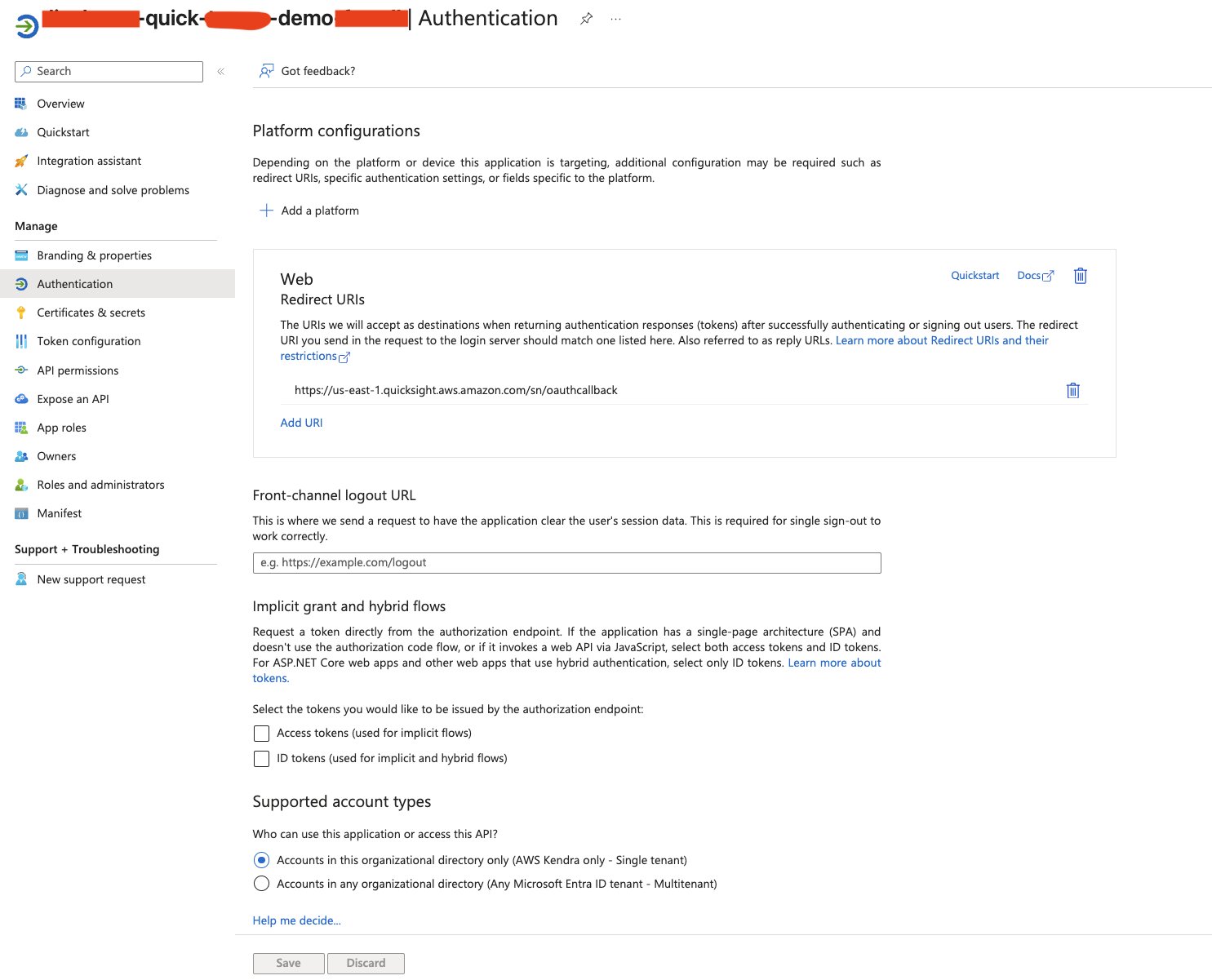

6) If not yet provided Redirect URI in step 2), then go to Authentication => Add a platform => Web, provide redirect URL:

https://us-east-1.quicksight.aws.amazon.com/sn/oauthcallback

7) Go to AWS > Quick Suite page, and click on Integration:

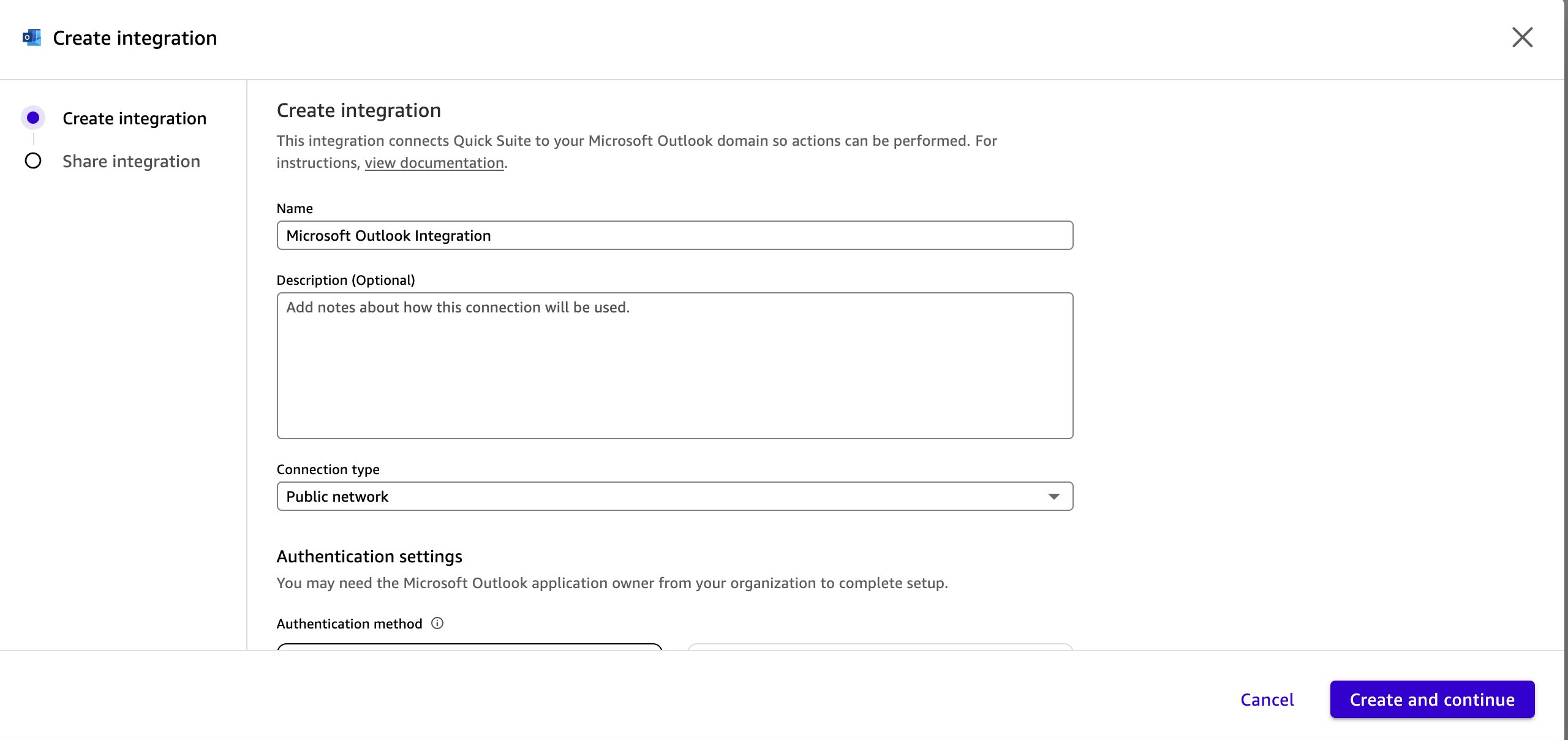

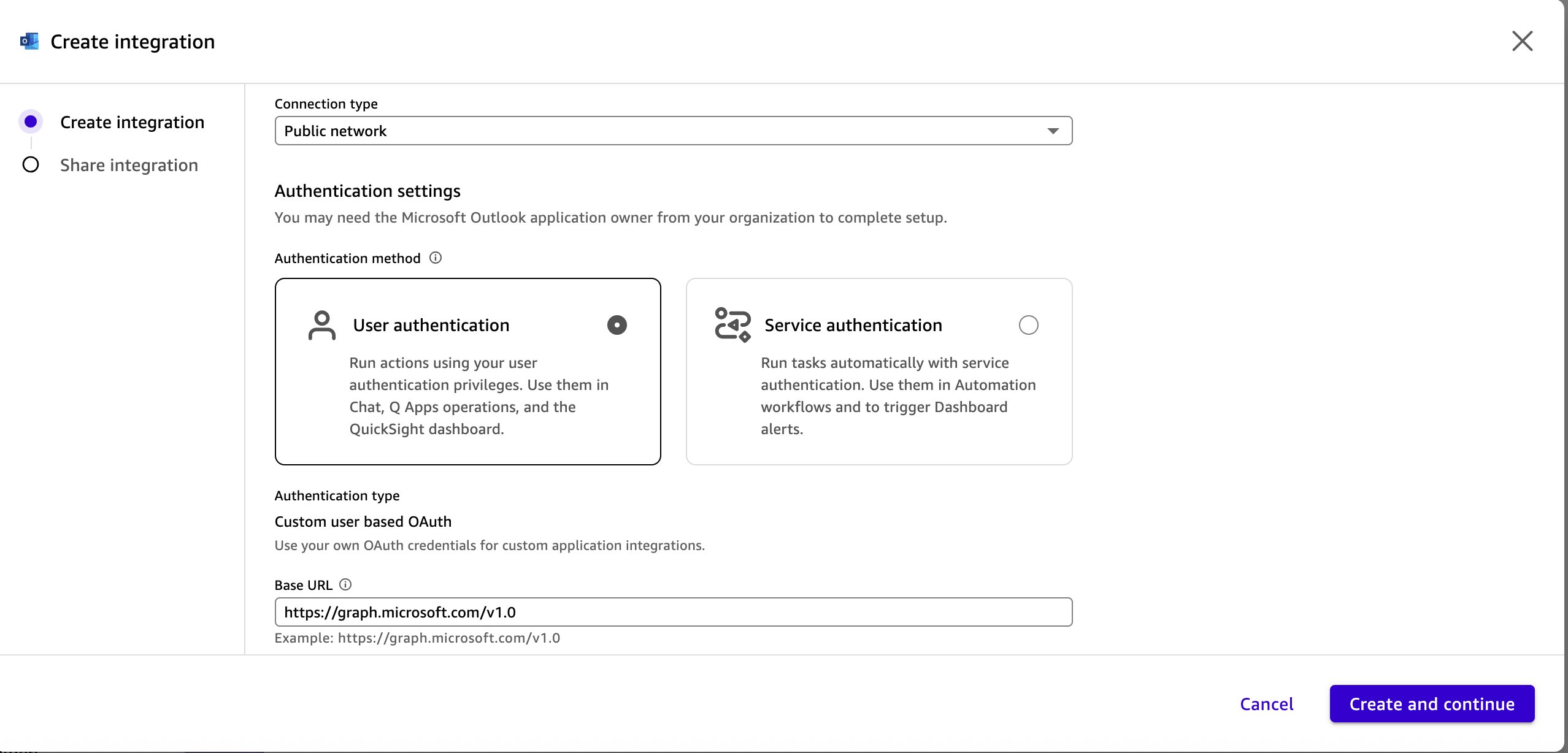

8) Select Microsoft Outlook then Next

Base URL: https://graph.microsoft.com/v1.0

Client ID: copy the value from step 5

Client Secret: copy the value from step 4

Token URL: https://login.microsoftonline.com/{your_tenant_id}/oauth2/v2.0/token

Authorization URL: https://login.microsoftonline.com/{your_tenant_id}/oauth2/v2.0/authorize

Redirect URL: https://us-east-1.quicksight.aws.amazon.com/sn/oauthcallback

Note: {your_tenant_id} is copied from step 5).

9) Click on Create and continue

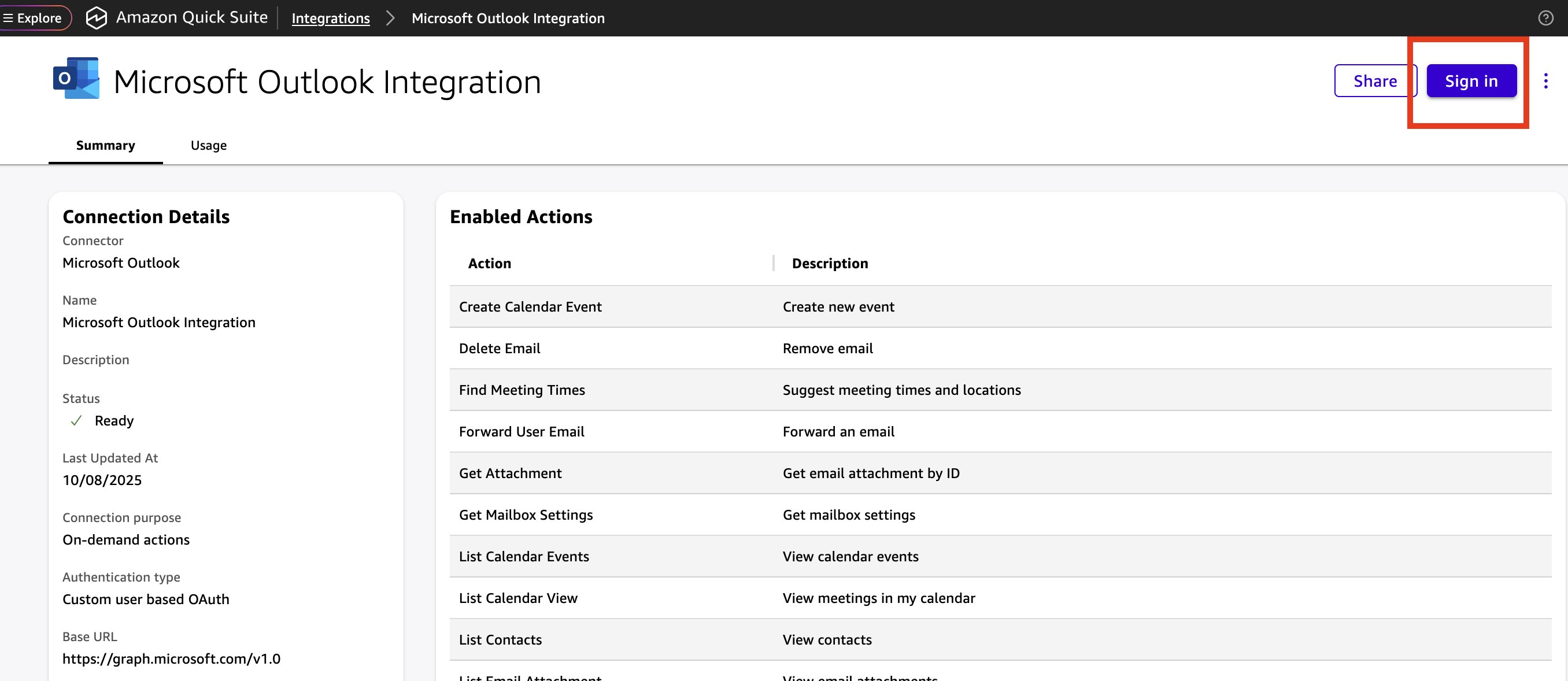

10) Navigate to Integration => Actions => Microsoft Outlook Integration (or your MS Outlook integration name), and click on Sign in:

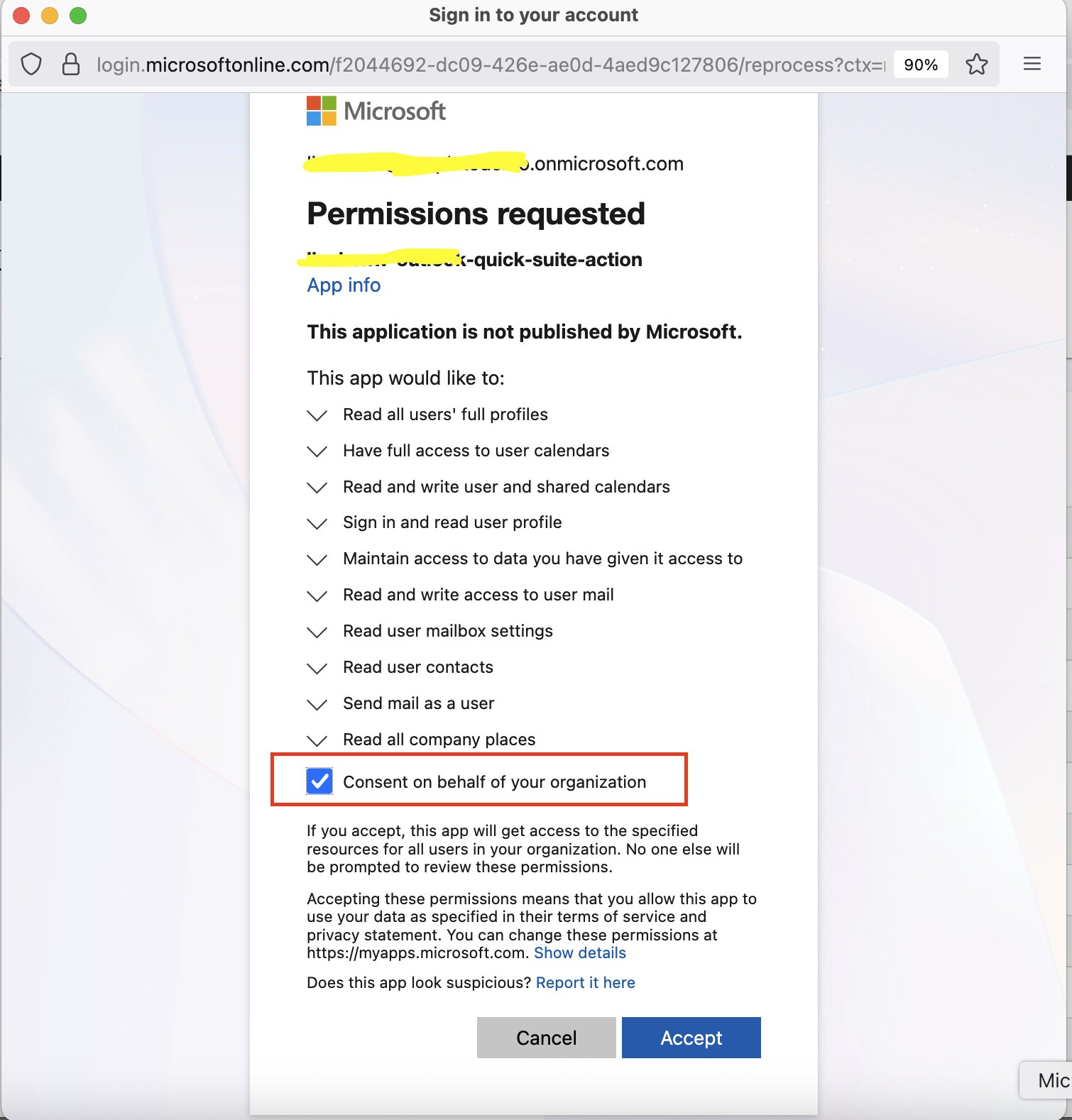

11) Check Consent on behalf of your organization and click Accept:

12) In Quick Suite, while creating chat agent, you can now link this action to the chat agent.
