Examples

The jsapi/examples/ directory contains working demonstrations of the DrawIO JSAPI in Node.js applications.

Available Examples

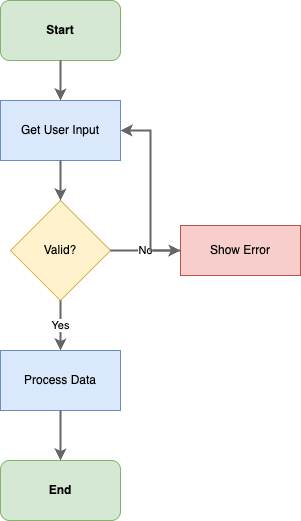

hello-drawio

Creates a basic flowchart with shapes and connections. Demonstrates core JSAPI features including:

• Creating a diagram engine
• Inserting vertices (shapes)
• Connecting shapes with edges
• Applying styles
• Saving to a .drawio file

Output:

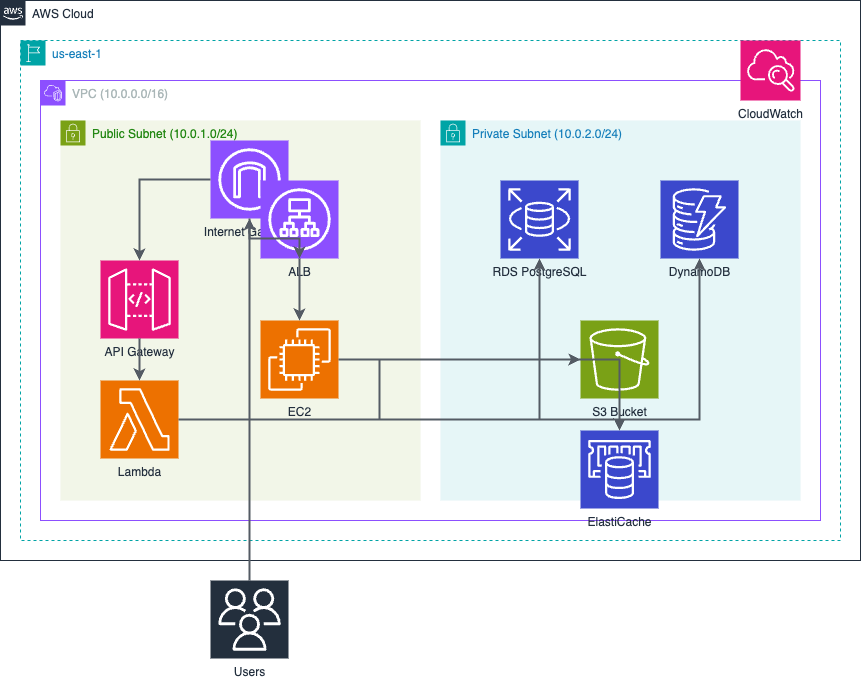

hello-aws4

Builds an AWS architecture diagram using official AWS service icons. Shows how to:

• Use the AWS4 stencil library
• Insert AWS service icons (Lambda, S3, RDS, etc.)
• Create AWS grouping containers (VPC, Availability Zones)
• Connect services with labeled edges

Output:

custom-icon

Demonstrates how to use custom images (SVG and PNG) in diagrams. Shows six different methods for adding custom icons:

• Using insertImageVertex() with SVG content
• Using insertImageVertex() with PNG data
• Using insertVertex() with manual style objects
• Using insertVertex() with style strings
• Custom styling with shadows and opacity
• Controlling aspect ratio

Key features:

• createSvgDataUri() - Convert SVG strings to data URIs
• createImageDataUri() - Convert image buffers to data URIs
• insertImageVertex() - Convenience method for image vertices
• Base64 encoding of custom images
• Embedded vs external image trade-offs

Output:

A diagram with six smiley face icons demonstrating different embedding techniques.

Running the Examples

Each example is a standalone Node.js project that uses the JSAPI as a local dependency.

Prerequisites

• Node.js 18 or later
• The JSAPI must be built first

Build the JSAPI

From the repository root:

cd jsapi
npm install
npm run build

Run an Example

Navigate to the example directory and run:

cd jsapi/examples/hello-drawio
npm install
npm start

For the AWS example:

cd jsapi/examples/hello-aws4
npm install
npm start

For the custom icon example:

cd jsapi/examples/custom-icon
npm install
npm start

Output

Each example generates a .drawio file in the example's directory. The output location is displayed in the console when the script completes.

Opening Generated Diagrams

The generated .drawio files can be opened with:

• diagrams.net - Web-based editor (no installation required)
• draw.io Desktop - Standalone desktop application
• VS Code Draw.io Integration - VS Code extension for editing diagrams

Modifying Examples

The example scripts are well-commented and can be modified to experiment with different diagram structures, styles, and layouts. Each script demonstrates a different aspect of the JSAPI capabilities.
