Amazon Quick on desktop: Cognito OpenID Connect (OIDC) Provider¶
Amazon Quick on desktop for enterprise customers requires an OIDC provider. As stated in the documentation, you can use a compatible OIDC provider such as Entra ID, Okta, Auth0, or PingOne. You can also use Amazon Cognito as an OIDC provider with a proxy. This sample, deployable through the AWS Cloud Development Kit (CDK) and AWS CloudFormation, provides the infrastructure for that solution.
This solution is designed for customers who do not have or want to use one of the aforementioned OIDC providers and use local Amazon Quick users or AWS IAM Identity Center without a federated identity provider (IdP). As with all Quick desktop setup, emails used in Amazon Quick must also match the emails in your OIDC provider. See below for details on deployment and synchronization of users.
If you already have an IdP (Entra ID, Okta, PingOne, or a compatible OIDC provider), you don't need this stack. Use the enterprise setup guide instead.
Architecture¶

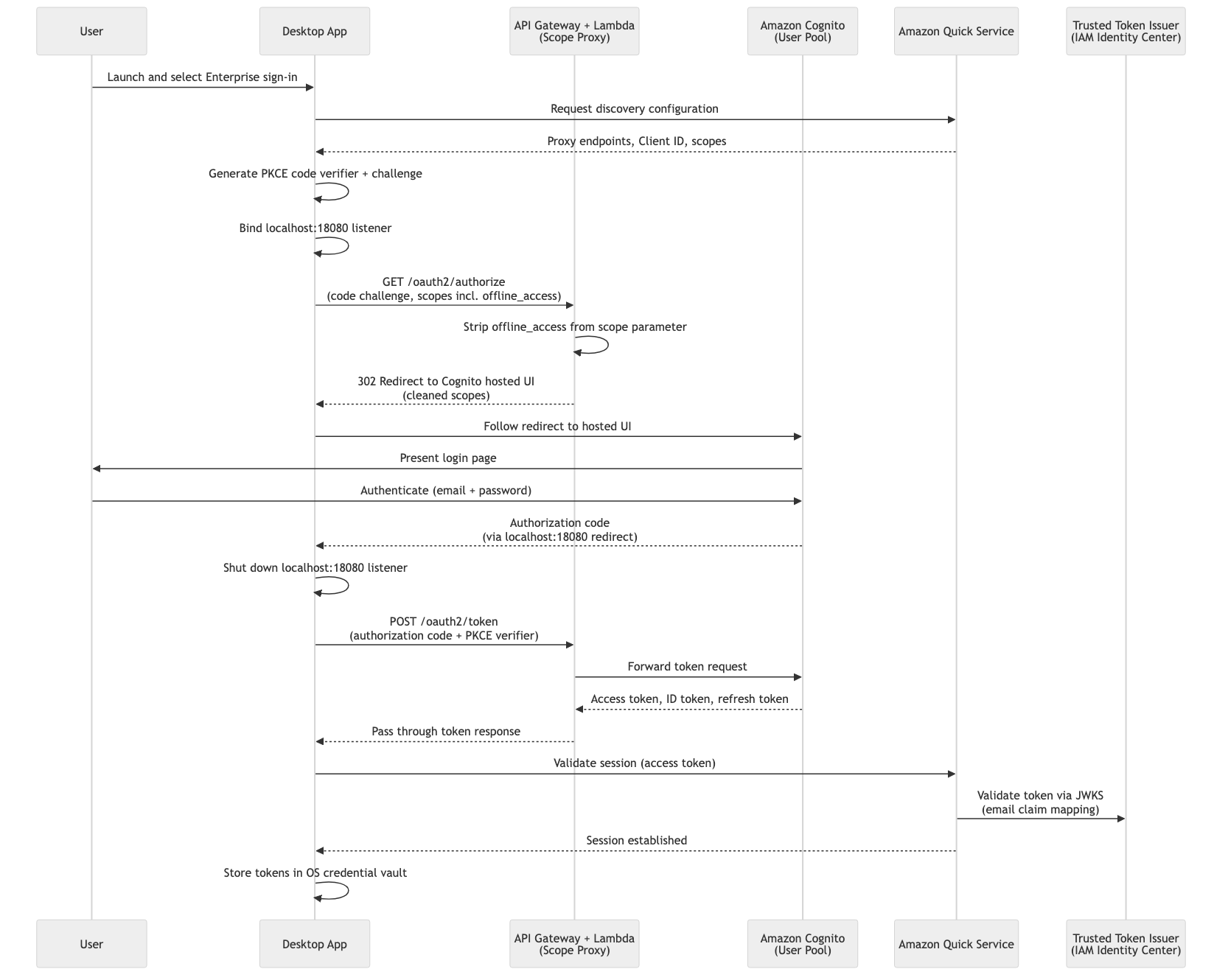

The following sequence diagram shows the Amazon Quick desktop authentication flow:
The stack deploys an Amazon Cognito User Pool with a hosted UI domain and public app client, and an Amazon API Gateway REST API with an AWS Lambda proxy that strips offline_access scope from OAuth requests. That scope is currently sent with all requests in Amazon Quick, but is not available within Cognito. New users are provisioned by an admin and receive a Cognito invitation email; they set their own password on first sign-in.
Important security considerations¶
Review and apply these before using the stack in production. AWS reference documentation is linked for each control.
API Gateway access (public by default)¶
The API Gateway REST API deployed by this stack is publicly accessible by default. The proxy only forwards OAuth requests to Cognito and does not expose sensitive data, but you should restrict who can reach it.
IP allowlist (CIDR). Pass allowedCidrs at deploy time to attach an API Gateway resource policy that allows execute-api:Invoke from your ranges and denies all other source IPs:
cdk deploy -c allowedCidrs='["203.0.113.0/24", "198.51.100.0/24"]'
Use the public egress ranges your desktop users connect from (corporate NAT gateways or VPN egress IPs). Requests from any other address receive 403 Forbidden. Omit the flag to leave the API open. Changing the policy requires a redeploy.
AWS WAF Attach a regional AWS WAF web ACL to the deployed prod stage for rate limiting, geo-restrictions, managed rule groups, and bot control. The web ACL must be REGIONAL scope in the same Region as the stack; see Using AWS WAF with API Gateway to create and associate it. The web ACL applies on top of any CIDR resource policy — both are evaluated, so a request must satisfy both to reach the proxy.
Multi-factor authentication (MFA)¶
Deploy with -c mfaRequired=true to require authenticator-app MFA for all users. See Adding MFA to a user pool.
cdk deploy -c mfaRequired=true
User Pool hardening¶
The deployed User Pool uses minimal defaults. Review and adjust the configuration in lib/construct-groups/identity-provider.ts to meet your organization's security policies.
| Requirement | CDK property | AWS reference |
|---|---|---|
| Password policy (length, complexity, expiry) | passwordPolicy |
Passwords and password policies |
| Multi-factor authentication | mfa, mfaSecondFactor |
Adding MFA |
| Account recovery | accountRecovery |
Passwords and account recovery |
| Advanced security (threat protection / adaptive auth) | advancedSecurityMode |
Threat protection |
| Custom domain | customDomain |
Custom domains |
| Token validity | accessTokenValidity, idTokenValidity |
Token expiration |
| Callback URLs | callbackUrls |
— |
| Removal policy (retain on stack delete) | -c retain=true |
— |
To enforce MFA and a stricter password policy:
this.pool = new cognito.UserPool(this, 'Pool', {
// ...existing props
mfa: cognito.Mfa.REQUIRED,
mfaSecondFactor: { sms: false, otp: true },
passwordPolicy: {
minLength: 12,
requireUppercase: true,
requireDigits: true,
requireSymbols: true,
tempPasswordValidity: Duration.days(3),
},
advancedSecurityMode: cognito.AdvancedSecurityMode.ENFORCED,
});
For an overview of all user pool security features, see Using Amazon Cognito user pools security features.
Prerequisites¶
- AWS account with an active Amazon Quick subscription
- Node.js 18+, AWS CDK CLI, and configured AWS credentials
- Python 3.12+ (Lambda runtime)
Setup¶
Follow these steps in order. Steps 1–2 deploy the stack and collect its outputs, steps 3–4 connect it to Amazon Quick and provision users, and step 5 signs in.
Step 1: Deploy the stack¶
Install dependencies and deploy:
npm install
cdk deploy
To restrict the API Gateway to specific desktop IP ranges:
cdk deploy -c allowedCidrs='["203.0.113.0/24", "198.51.100.0/24"]'
To require MFA (authenticator app) for all users:
cdk deploy -c mfaRequired=true
To retain the User Pool when the stack is destroyed:
cdk deploy -c retain=true
Step 2: Retrieve the stack outputs¶
You will use these values in Step 3.
aws cloudformation describe-stacks \
--stack-name QuickDesktopCognitoProxyStack \
--query "Stacks[0].Outputs" --output table
| Output | Description |
|---|---|
PoolId |
Cognito User Pool ID |
ClientId |
App client ID (also used as the aud claim) |
IssuerUrl |
OIDC issuer URL |
AuthEndpoint |
Authorization endpoint (points to the proxy) |
TokenEndpoint |
Token endpoint (points to the proxy) |
JwksUri |
JSON Web Key Set URI |
Step 3: Configure Amazon Quick¶
In the Amazon Quick management console, configure extension access and create the extension using the Step 2 outputs. Map the fields as follows:
| Amazon Quick field | Stack output |
|---|---|
| Client ID / Aud claim | ClientId |
| Issuer URL | IssuerUrl |
| Authorization endpoint | AuthEndpoint |
| Token endpoint | TokenEndpoint |
| JWKS URI | JwksUri |
For the complete instructions, follow Step 2 in the enterprise setup guide.
Step 4: Create and sync users¶
The included script copies users from IAM Identity Center or local Amazon Quick into the Cognito User Pool. It auto-discovers the pool ID from the deployed stack, shows a plan, and prompts for confirmation before creating each user.
python3 scripts/sync_users.py --source idc # from IAM Identity Center
python3 scripts/sync_users.py --source local # from local Amazon Quick users
Each created user receives a Cognito invitation email containing their username and a one-time temporary password generated by Cognito. On first sign-in they are required to set their own password — the password is never set or seen by the administrator. For users who already exist but have not yet signed in, the script offers to resend the invitation. Requires Python 3.12+ and boto3.
The invitation arrives from an address like no-reply@verificationemail.com <no-reply@verificationemail.com> with the subject "[EXTERNAL] Your temporary password" and a body such as:
Your username is
and temporary password is .
These are the credentials for signing into Amazon Quick on desktop.
The email on each Cognito user must exactly match the user's email in Amazon Quick.
Email delivery: By default the User Pool sends invitation emails using Cognito's built-in email, which is rate-limited and intended for testing. For production, configure Amazon SES on the User Pool.
Step 5: Sign in¶
Launch the Amazon Quick desktop application and select Enterprise sign-in. Sign in with your email and the temporary password from the invitation email (and MFA, if enabled). You are prompted to set your own password on first login. The desktop app stores the resulting tokens in the OS credential vault.
Keeping users in sync¶
The sync script is a manual, interactive tool for initial provisioning. It does not run automatically, does not detect removed users, and requires re-running whenever your identity source changes.
For production, you need an automated mechanism. You could trigger a Lambda function on a schedule (or in response to IAM Identity Center events) that reconciles users between your source of truth and the Cognito pool. If your upstream IdP supports System for Cross-domain Identity Management (SCIM), a connector or middleware can push user lifecycle events to Cognito directly. Alternatively, maintain a user manifest in source control and sync it on merge via a pipeline step.
The sync script's CognitoUserSyncer and lister classes can be extracted into a Lambda function with minimal changes. Without automated sync, users added or removed from your identity source won't be reflected in the pool until you manually intervene.
Cleanup¶
cdk destroy
Manually delete the extension access and extension from the Amazon Quick management console.
Security¶
See CONTRIBUTING for more information.
License¶
This sample is licensed under the MIT-0 License. See the repository LICENSE.
