AI Agent FactoryGitHub

Build and ship agents visually

Build

AgentCore Visual Workflow Platform

Visual workflow builder for Amazon Bedrock AgentCore: design, configure, and deploy agents through a drag-and-drop canvas with templates and enterprise governance.

First deploy
Roughly 15 to 20 minutes for a first-time deploy source
Validated regions
Any AWS region; us-east-1 is the default source
Infrastructure as code
AWS CDK (Python) run through npx; serverless stack of API Gateway, Lambda, Step Functions, DynamoDB, S3 and CloudFront source
QuickstartSource on GitHub

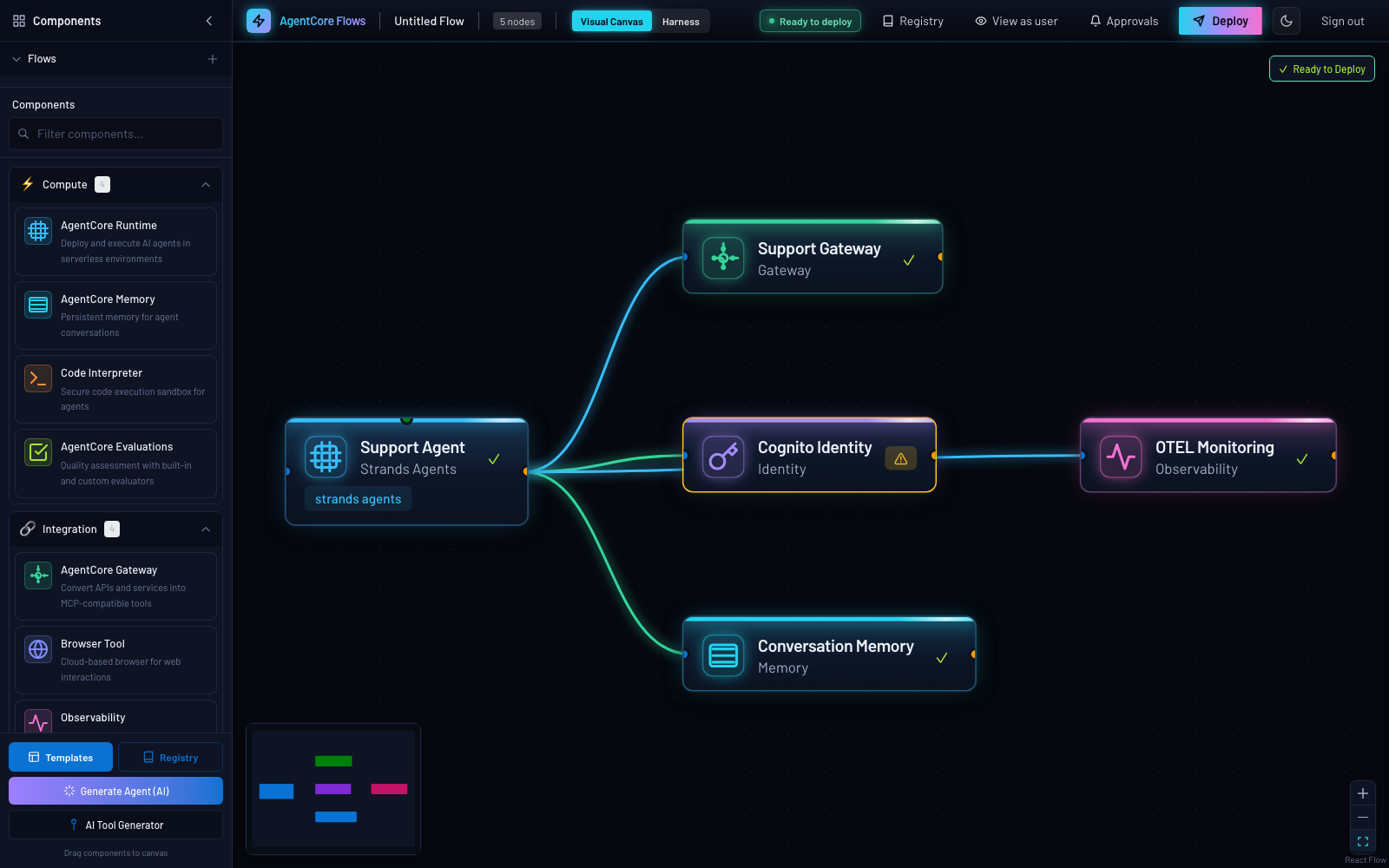

Visual canvas: a customer support agent wired to Gateway, Identity, Memory, and Observability

What it is

  • Drag-and-drop AgentCore components: Runtime, Gateway, Memory, Knowledge Base, Browser, Identity, Observability, Policy, Connectors
  • Template gallery with six one-click templates
  • CloudFormation and Python export
  • Real SaaS connectors: Jira, Asana, Slack, GitHub, Salesforce, or any OpenAPI spec
  • 13 model providers
  • Scope-based RBAC (advisory by default) and Cedar policy enforcement per Policy node
  • Agent registry with approval workflow, versioning and rollback, cost budgets, audit analytics
  • Manifest-driven teardown with no orphans

Source: README.md: Key Features

Status

Version
0.1.0 plus unreleased changes CHANGELOG.md
Status
Version 0.1.0 released 2026-07-17, with unreleased changes recorded in CHANGELOG.md CHANGELOG.md

Recent changes: commit history for Agentic-ai-self-service on GitHub

No open advisories are tracked for this project.

At a glance

Self-Service facts with a source for every value
FactValueSource
Validated regionsAny AWS region; us-east-1 is the default Outside us-east-1 the WAF web ACL is REGIONAL on the Cognito user pool and the CloudFront distribution runs without an edge ACL. APAC regions may need the model ID set explicitly.README.md: Prerequisites
Default regionus-east-1README.md: Quickstart
What it deploysServerless stack: API Gateway, Lambda, Step Functions, DynamoDB, S3 and CloudFront, plus a Cognito user pool and a WAF web ACLREADME.md: Quickstart
First deployRoughly 15 to 20 minutes for a first-time deployREADME.md: Quickstart
Hands-on timenot documented The README documents the deploy time only and publishes no hands-on figure.none
CostAbout $0.02 to $0.39 per month for the platform infrastructure at low to moderate usage (docs/COSTS.md estimate, us-east-1 list prices) Excludes the WAF web ACL that infra/stacks/platform_stack.py always creates, which is billed separately and for which the repository publishes no figure, and all agent inference, AgentCore and vector-store usage.COSTS.md: Monthly Cost Estimates
Infrastructure as codeAWS CDK (Python) run through npx; serverless stack of API Gateway, Lambda, Step Functions, DynamoDB, S3 and CloudFrontREADME.md: Quickstart
Account topologySingle account and single region per deployment; several deployments can coexist in one account (dev and prod, or two regions) Multi-region and multi-account deploy is opt-in and off by default (docs/ENTERPRISE_CAPABILITIES.md); a cross-account role template ships as docs/cross-account-deploy-role.json.README.md: Safe to run with more than one deployment in the account
Auth and policyCognito user pool with group-based scopes (RBAC advisory by default), owner-scoped tenant isolation, and Cedar ENFORCE per Policy nodeREADME.md
StatusVersion 0.1.0 released 2026-07-17, with unreleased changes recorded in CHANGELOG.mdCHANGELOG.md
TeardownRun ./scripts/cleanup.sh (prompts for confirmation). It deletes every AgentCore resource the platform created, empties the S3 buckets and runs cdk destroy.README.md: Cleanup
Version0.1.0 plus unreleased changesCHANGELOG.md

Compare all four projects

Quickstart

Deploy the platform

Prerequisites: Self-Service prerequisites on the Start pages.

One script validates prerequisites, deploys the CDK stack, builds the frontend and prints the URLs.

Expected time: Roughly 15 to 20 minutes for a first-time deploy README.md: Quickstart

  1. Clone the repository and enter the project folder

    git clone https://github.com/aws-samples/sample-ai-agent-factory.git
cd sample-ai-agent-factory/Agentic-ai-self-service

    Folder names are exact and case-sensitive.

    Source: README.md: Quick Start

  2. Deploy with at least one Cognito user

    # Minimal deploy (dev environment, us-east-1)
COGNITO_USERS="user@example.com" ./scripts/deploy.sh

# Specific environment
COGNITO_USERS="user@example.com" ENVIRONMENT_NAME=prod ./scripts/deploy.sh

# Another region (Frankfurt)
COGNITO_USERS="user@example.com" AWS_REGION=eu-central-1 ./scripts/deploy.sh

    A first-time deploy takes roughly 15 to 20 minutes. Lambda code is packaged by CDK; no Docker build or ECR push is needed.

    Source: README.md: Quickstart

  3. Assign a persona on first sign-in

    POOL_ID=$(aws cognito-idp list-user-pools --max-results 40 --region us-east-1 \
  --query "UserPools[?Name=='agentcore-workflow-dev-users'].Id | [0]" --output text)

# Full access (all scopes) + admin UI + registry approver:
for g in g-admins-super t-admin registry-admin; do
  aws cognito-idp admin-add-user-to-group --user-pool-id "$POOL_ID" \
    --username you@example.com --group-name "$g" --region us-east-1
done

    COGNITO_USERS creates users with no group, so a new user is read-only until you assign one. Always pass the region you deployed to. Sign out and back in after changing groups.

    Source: README.md

  4. Open the frontend URL the script printed

    The script prints the CloudFront frontend URL and the API Gateway URL. Both are also CloudFormation stack outputs.

    Source: README.md: Accessing the Platform

After the first deploy

First sign-in: assign a persona

COGNITO_USERS pre-creates Cognito users but assigns them to no group. Group membership grants capability scopes, so a brand-new user signs in effectively read-only (browse works; Clone and publish are disabled) until you assign a group. Sign out and back in after changing groups.

Source: README.md

Templates

Template gallery: six one-click starting points from beginner to advanced. README.md

Template gallery
Template gallery screenshot from the README.

Bring your own LiteLLM

If you already run a LiteLLM proxy, the README describes two roles for it: an MCP gateway for individual agents, and the agent catalog behind the Registry. For the gateway role an agent on the canvas has three supported shapes. Read the full section in the rendered README.

The three supported gateway shapes on the canvas, from the README
On the canvasWhat gets createdUse when
Gateway node, Provider = AgentCore (default)A real AgentCore Gateway with your Lambda, OpenAPI, Smithy or MCP targets.The default. Nothing about it changes.
Gateway node, Provider = LiteLLMNo AgentCore Gateway at all. The agent talks straight to your proxy.LiteLLM replaces the gateway. Your proxy already aggregates every tool the agent needs.
Gateway node, Provider = AgentCore, with a Custom endpoint MCP target pointed at LiteLLMAn AgentCore Gateway that carries your proxy as one mcpServer target.You want LiteLLM tools alongside Lambda or OpenAPI targets, or you want AgentCore inbound Cognito auth, semantic search and observability in front of it.

Source: README.md: Bring your own LiteLLM

Enterprise capabilities

Enterprise Platform Capabilities on this site covers Versioning and rollback, Cedar policy enforcement, evaluation, cost analytics, registry, prompt library, triggers, connectors, HITL, governance and FinOps. README.md: Documentation

Architecture and figures

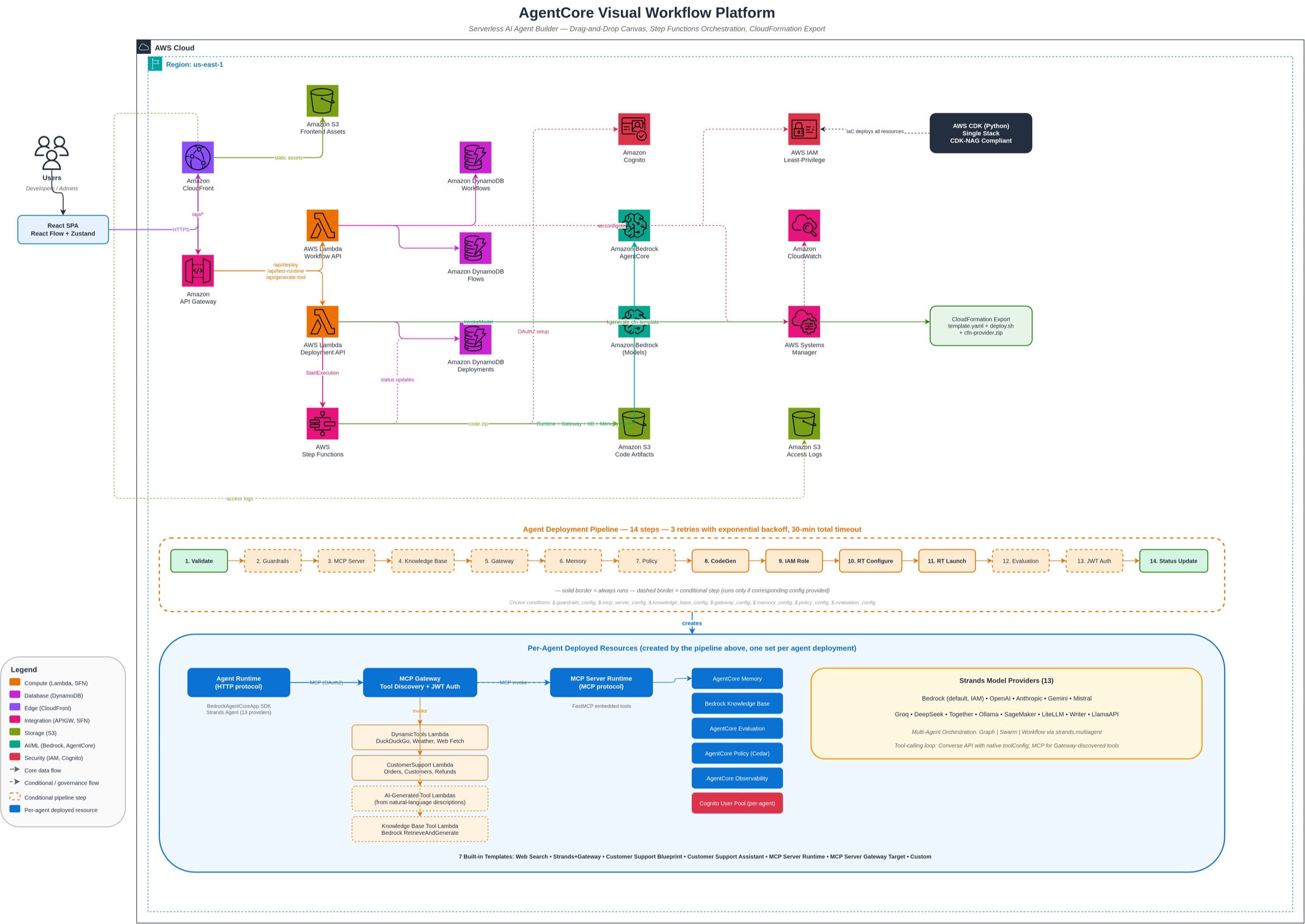

Architecture diagram of the AgentCore Visual Workflow Platform
Architecture, from the Self-Service README. README.md: Architecture Download the editable .drawio source

Architecture across all four projects

Known limitations and support envelope

Each item is copied from the project README or docs without paraphrase.

  • WAF outside us-east-1. The same rule set as a REGIONAL WebACL on the Cognito user pool. The distribution runs without an edge ACL README.md: Deploying to another region
  • APAC inference prefixes. One region-specific caveat worth knowing before you pick a region: Bedrock's cross-region inference prefixes are us., eu. and apac., and the apac. family covers only the older Claude models. In APAC, current-generation models are published under country prefixes (jp. in ap-northeast-1, au. in ap-southeast-2) or as global., so an APAC deployment may need its model ID set explicitly. us-* and eu-* regions need no such adjustment. README.md: Deploying to another region
  • RBAC is advisory by default. Scope-based RBAC (services/rbac.py) ships advisory by default (RBAC_ENFORCE=false): every request is allowed, but a request that would be denied logs RBAC advisory (would-deny): .... RBAC_ROLLOUT.md: RBAC Enforcement Rollout Runbook
  • Control plane has no VPC egress. The proxy must be reachable from the deploy Lambda. The control plane has no VPC egress, so a VPC-private LiteLLM cannot be probed and the deploy will fail at step 3 even though a VPC-mode Runtime could reach it at invoke time. README.md: As the gateway itself, per agent

Support envelope for all projects

Evidence

The README lists three local test suites and points to integration tests and live verification scripts that run against a deployed stack.

What runs against live AWS

Integration tests run against a real deployed stack with zero mocking: they deploy each built-in template, invoke the deployed runtimes, verify responses, and clean up all resources. The backend, CDK and frontend suites below run locally.

Source: README.md: Running Tests, DEVELOPMENT.md: Integration Tests

Backend unit and property tests

cd backend && pip install -e ".[dev]" && pytest   # backend unit + property tests

What a pass proves: The backend logic holds under unit tests and property-based tests (Pytest with Hypothesis).

Source: README.md: Running Tests, DEVELOPMENT.md

CDK assertions

cd infra && pip install -r requirements.txt && pytest tests/ -v   # CDK assertions

What a pass proves: The synthesized CloudFormation template contains the expected serverless resources (API Gateway, Lambda, Step Functions, DynamoDB) and none of the removed ones (VPC, ECS, ALB, ECR, CodeBuild).

Source: README.md: Running Tests, DEVELOPMENT.md

Frontend tests

cd frontend && npm install && npm test            # frontend tests

What a pass proves: The frontend passes its unit and property tests (Vitest with fast-check).

Source: README.md: Running Tests, DEVELOPMENT.md

Integration tests against a deployed stack

cd backend

# Set required environment variables
export API_GATEWAY_URL="https://XXXXXXXXXX.execute-api.us-east-1.amazonaws.com"
export AWS_REGION="us-east-1"

# Run integration tests only
pytest -m integration -v

What a pass proves: Each built-in template deploys, the deployed runtimes answer, and every resource is cleaned up afterwards. Needs AWS credentials, a deployed stack and the API Gateway URL.

Source: DEVELOPMENT.md: Integration Tests

Live verification scripts

What a pass proves: Standalone probes drive the shipped product code against the real external system and print a PASS or FAIL line per check, exiting non-zero on any failure.

Source: DEVELOPMENT.md: Live verification scripts

Documentation on this site

Teardown

Deploy the platform

The cleanup script deletes every AgentCore resource the platform created, empties the S3 buckets and runs cdk destroy. It prompts for confirmation.

./scripts/cleanup.sh

Source: README.md: Cleanup

Costs and cleanup for all projects
