Creating AppRegistry application with Proton

What are we going to do?

We are going to perform the following steps:

  • Update environment template and deploy new version so resources will be auto-registered and metadata collected
  • Validate that environment resources and metadata are associated with the AppRegistry application

Step-by-step guide

Here are the steps you need to follow to “Create Proton environment template for AppRegistry application”.

AWS Service Catalog AppRegistry allows you to create a repository of your applications and associated resources. You can then define and manage your application metadata. This allows you to understand the context of your applications and resources across your environments.

AppRegistry provides a way to group your applications and application resources. You define applications within the AppRegistry by providing a name, description, associations to CloudFormation stacks, and associations to application metadata. We’ll start by associating Proton environment resources and it’s metadata, and then continue with the Proton services.

Update AWS Proton environment template and deploy the new version

Prepare folder to update Proton templates.

cd ~/environment/moving-up-stack-workshop/resources/code/
cp -r scenario2/loadbalanced-fargate-redis-mysql scenario3/loadbalanced-fargate-redis-mysql

Navigate to environment/infrastructure and open cloudformation.yaml by running the command below.

cd ~/environment/moving-up-stack-workshop/resources/code/scenario3/loadbalanced-fargate-redis-mysql/environment/infrastructure

# open file in Cloud9 editor
c9 cloudformation.yaml

Add new AWS resources under Resources.

Please verify the indentation is correct when pasting into the yaml file. Also, please make sure you save the file before moving to the next step.

AppRegistryApp:
  Type: AWS::ServiceCatalogAppRegistry::Application
  Properties:
    Description: "AppRegistry application created with CloudFormation"
    Name: "{{ environment.inputs.application_name }}"
AppRegistryResourceAssociation:
  Type: AWS::ServiceCatalogAppRegistry::ResourceAssociation
  Properties:
    Application: !GetAtt AppRegistryApp.Id
    Resource: !Ref AWS::StackName
    ResourceType: CFN_STACK
  DependsOn:
    - AppRegistryApp
AppRegistryAttributeGroup:
  Type: AWS::ServiceCatalogAppRegistry::AttributeGroup
  Properties:
    Attributes: {
      "ApplicationName": "{{ environment.inputs.application_name }}",
      "CostCenter": "{{ environment.inputs.cost_center }}",
      "LOB_Owner": "{{ environment.inputs.lob_owner }}"
    }
    Description: "{{ environment.inputs.application_name }}-{{ environment.name }}"
    Name: "{{ environment.inputs.application_name }}-{{ environment.name }}"
AppRegistryAttributeGroupAssociation:
  Type: AWS::ServiceCatalogAppRegistry::AttributeGroupAssociation
  Properties:
    Application: !GetAtt AppRegistryApp.Id
    AttributeGroup: "{{ environment.inputs.application_name }}-{{ environment.name }}"
  DependsOn:
    - AppRegistryApp
    - AppRegistryAttributeGroup

In Outputs, add the new output variables.

ApplicationName:
  Value: "{{ environment.inputs.application_name }}"
CostCenter:
  Value: "{{ environment.inputs.cost_center }}"
LobOwner:
  Value: "{{ environment.inputs.lob_owner }}"
StackName:
  Value: !Ref AWS::StackName

Navigate to environment/schema and open schema.yaml by running the command below.

cd ~/environment/moving-up-stack-workshop/resources/code/scenario3/loadbalanced-fargate-redis-mysql/environment/schema

# open file in Cloud9 editor
c9 schema.yaml

Add the new input attributes under properties.

application_name:
  type: string
  description: "AWS ServiceCatalog AppRegistry application name."
cost_center:
  type: string
  description: "Application cost center."
lob_owner:
  type: string
  description: "Line of business (LOB) owner."

Declare those inputs as required under PublicEnvironmentInput.

required:
  - application_name
  - cost_center
  - lob_owner

The final schema in schema.yaml should look as below in the example. Please make sure you save the file before moving to the next step.

# Other attributes
...
types:
  PublicEnvironmentInput:
  # Other attributes
  ...
  required:
    - application_name
    - cost_center
    - lob_owner
  properties:
    # Other attributes
    ...
    application_name:
      type: string
      description: "AWS ServiceCatalog AppRegistry application name."
    cost_center:
      type: string
      description: "cost_center"
    lob_owner:
      type: string
      description: "lob_owner"

Create environment template bundle by zipping the environment folder, and upload the bundle to your S3 bucket.

cd ~/environment/moving-up-stack-workshop/resources/code/scenario3/loadbalanced-fargate-redis-mysql

tar -czf far-pubpriv-env-template-v2.tar.gz environment/
aws s3 cp \
  far-pubpriv-env-template-v2.tar.gz \
  s3://proton-cli-templates-${ACCOUNT_ID}-${AWS_DEFAULT_REGION}/far-pubpriv-env-template-v2.tar.gz
rm far-pubpriv-env-template-v2.tar.gz

Now that the new bundle is uploaded to your S3 bucket, create new version of the existing environment template.

aws proton create-environment-template-version \
  --template-name "Fargate-Public-Private-VPC" \
  --source s3="{bucket=proton-cli-templates-${ACCOUNT_ID}-${AWS_DEFAULT_REGION},key=far-pubpriv-env-template-v2.tar.gz}"

You can now publish the new environment template version, making it available for users in your AWS account to either create Proton environments or update existing that are created from previous version.

aws proton update-environment-template-version \
  --template-name "Fargate-Public-Private-VPC" \
  --major-version "2" \
  --minor-version "0" \
  --status "PUBLISHED"

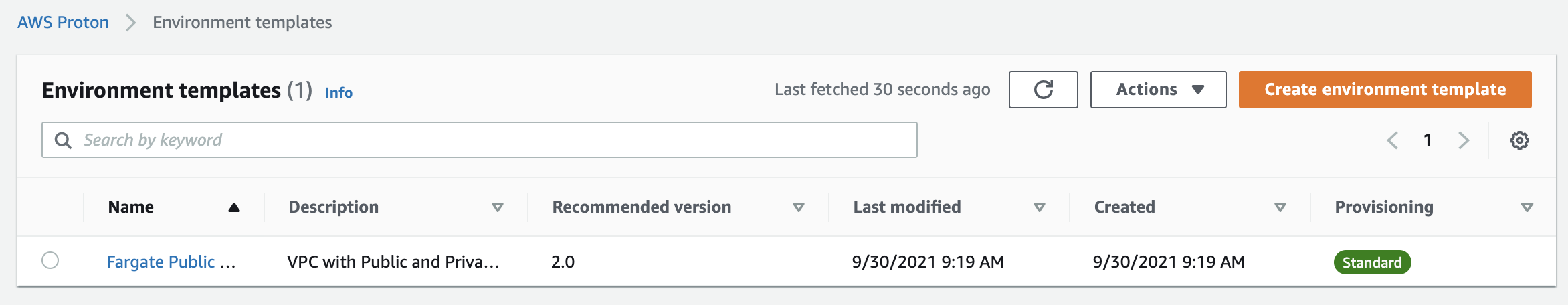

What did we just do? We just updated an existing Proton environment template and published it, making this version available for deployment. Open the Proton Environment Templates console and check that your new template has the recommended and published version 2.0.

env_templates env_templates

Now let’s update the environment to the new version. Open the Proton Environments console select the deployed environment. Open the environment MyFargateEnvironment, click Actions and choose Update major.

On the Configure Environment screen, click Edit.

On the Configure custom settings screen:

  • For Application name enter EcsApp
  • For Cost center enter 123456
  • For Lob owner enter Shirley Rodriguez
  • Click Next

Finally, on the Review screen, click Update. Wait a few minutes for your environment to be updated.

What did we just do? We just updated an existing Proton environment using the new version of the environment template. Open the Proton console and check that your environment is deployed using the new template version.

environment_updated

Now that new version is deployed, let’s see what changes have been applied to the AppRegistry application.

Navigate to the AWS Service Catalog AppRegistry application and observe that a new application has been created.

Select the application EcsApp, and observe that:

  • In Resources tab we know which AWS resources are part of the application
  • In Attribute groups tab we have one attribute group associated.

In Attribute groups tab, click on the attribute group name and observe that the Metadata is a JSON object with the values we entered when updating the Proton environment.

{
  "ApplicationName": "EcsApp",
  "CostCenter": "123456",
  "LOB_Owner": "Shirley Rodriguez"
}

What did we just do? We made the first step in mapping application resources and metadata in AppRegistry. We create an application and associated the environment resources with It. When updating the Proton environment, using the new version, we entered information about the application. This information is not stored in the AppRegistry attribute group that is also associated with the application.

Now let’s see how we can map all the services to the AppRegistry application and further enrich the application metadata.
